Description
Boost Me (for free)
Do you like my project?
Would you like to leave me a boost so I can always create new things.

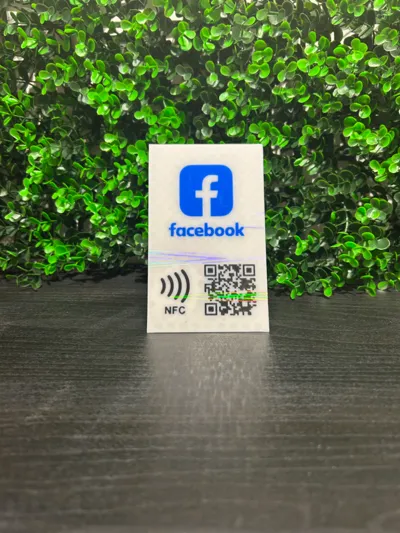

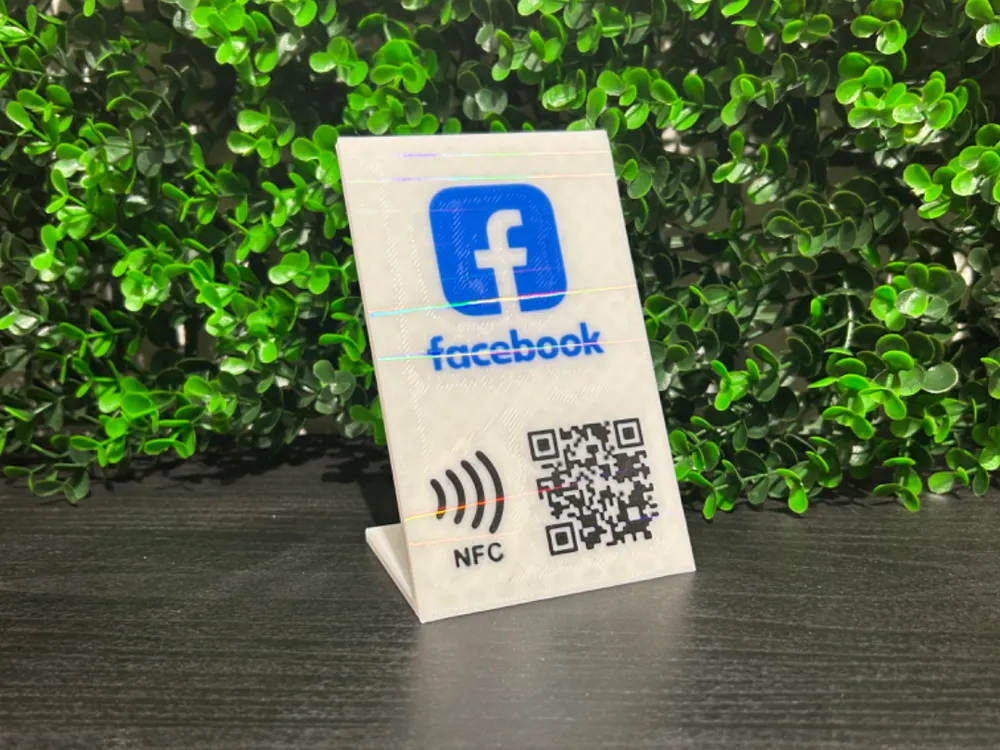

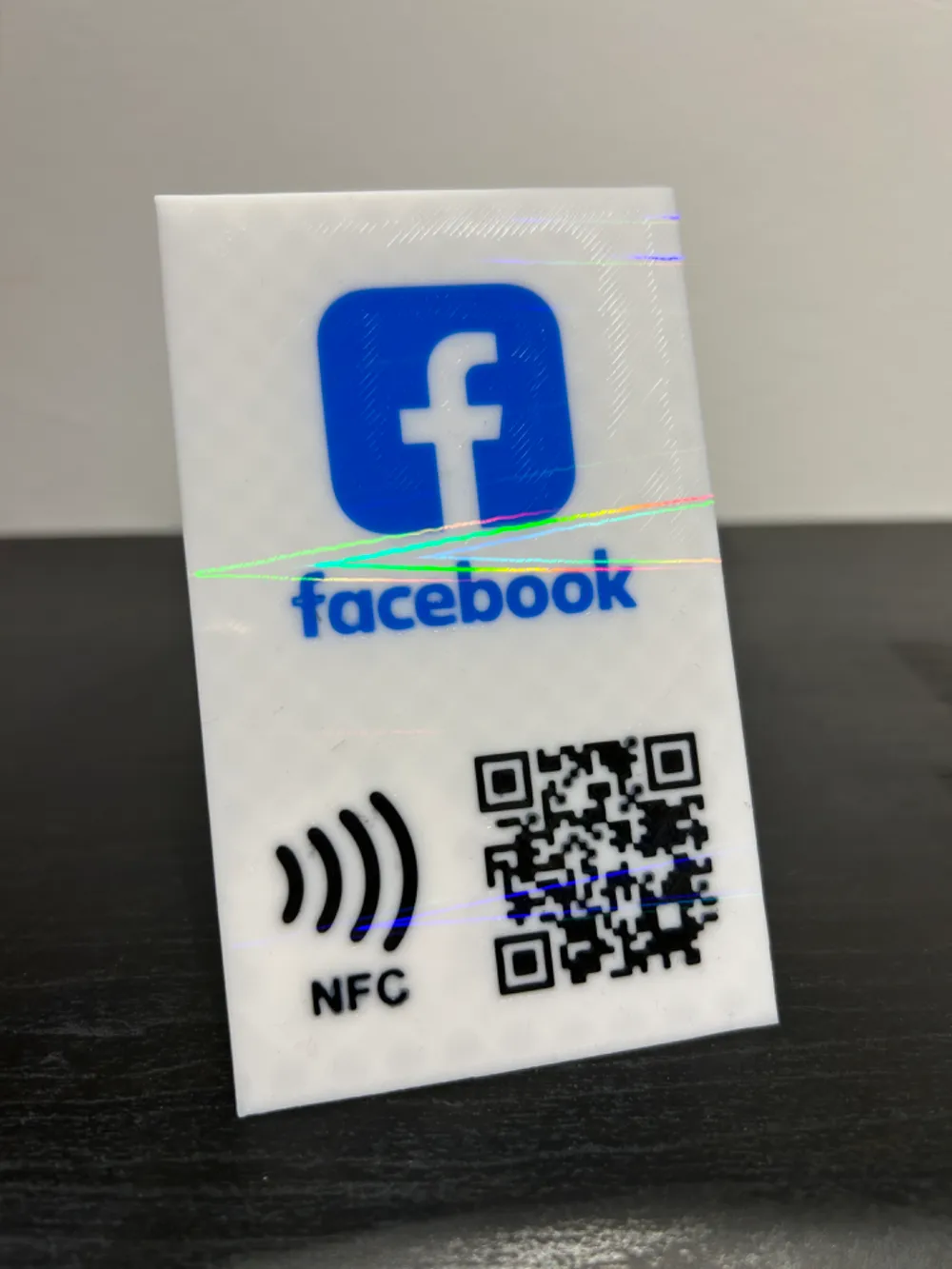

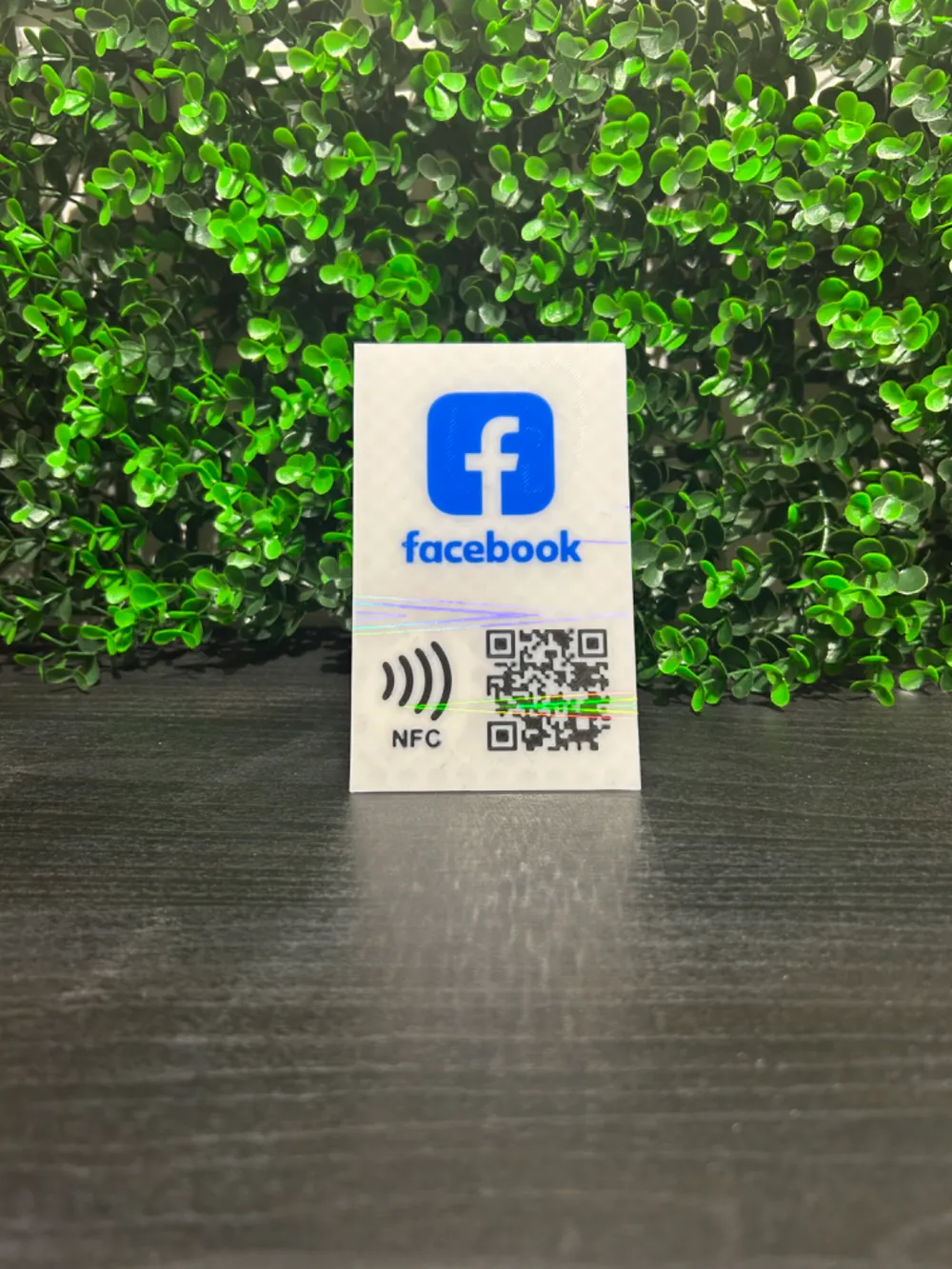

I created this stand nfc card Facebook
As for NFCs, I used these:
but the bambulab ones are also fine:
https://eu.store.bambulab.com/it-it/products/nfc-tag-with-adhesive?_pos=2&_sid=ac348c164&_ss=r
If you do not purchase the ones previously reported by me, just know that the hole in the print is 25mm in diameter with a height of 0.8mm.
To insert the nfc tag in the print I set a stop in the gcode at layer 12.
Just wait for the printer to stop at layer 12, insert the NFC tag and restart the printer manually.
If you also want to insert the QR code, download the .f3d file.
where it is possible to modify the card by inserting your QRcode or personal logo.
ADVISE:
To enter your QR code follow this procedure.
1) Download your QRcode (you will generally download it in image format).
2) Convert your QRcode image to .svg format.
I use the online site convertio.co

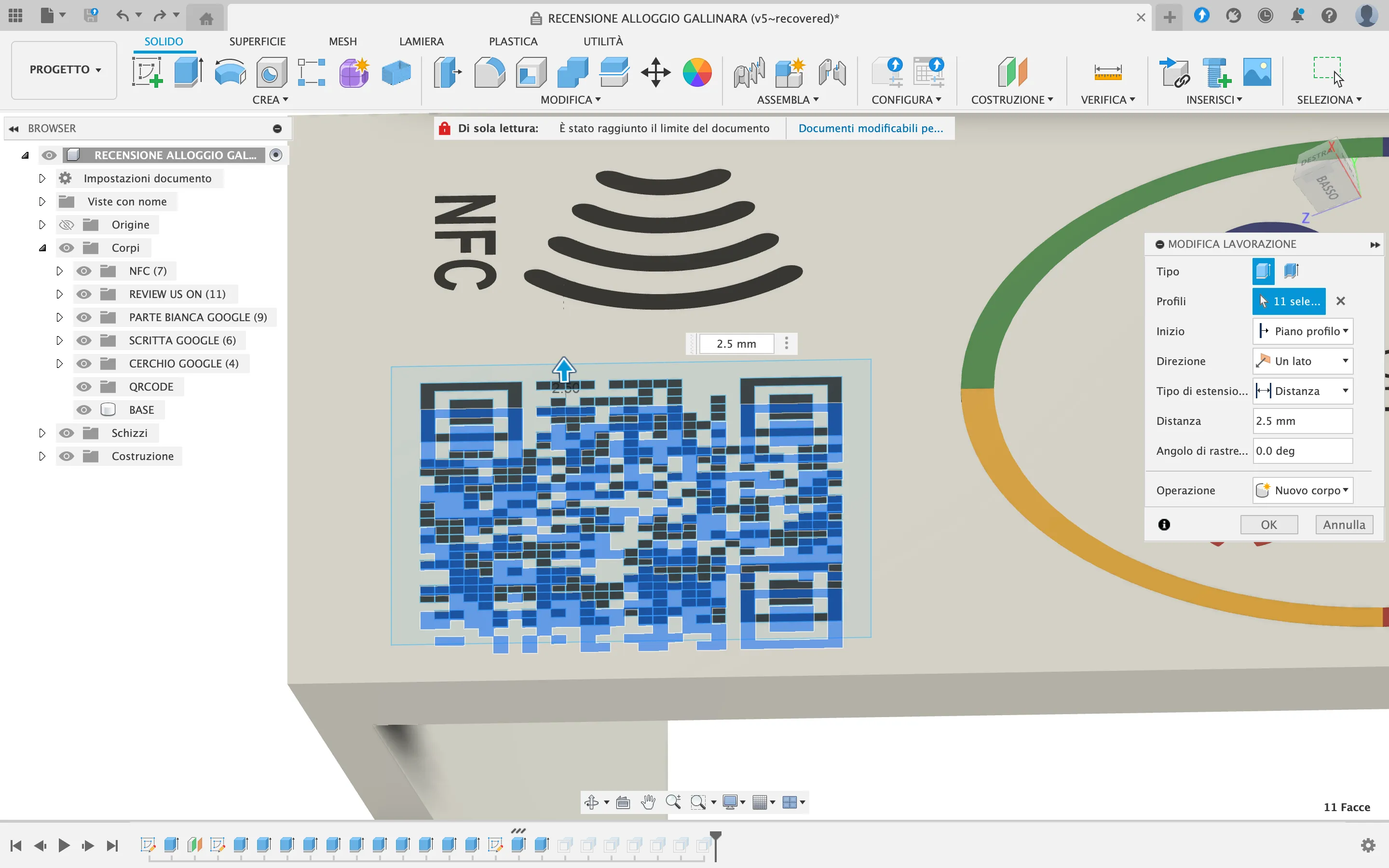

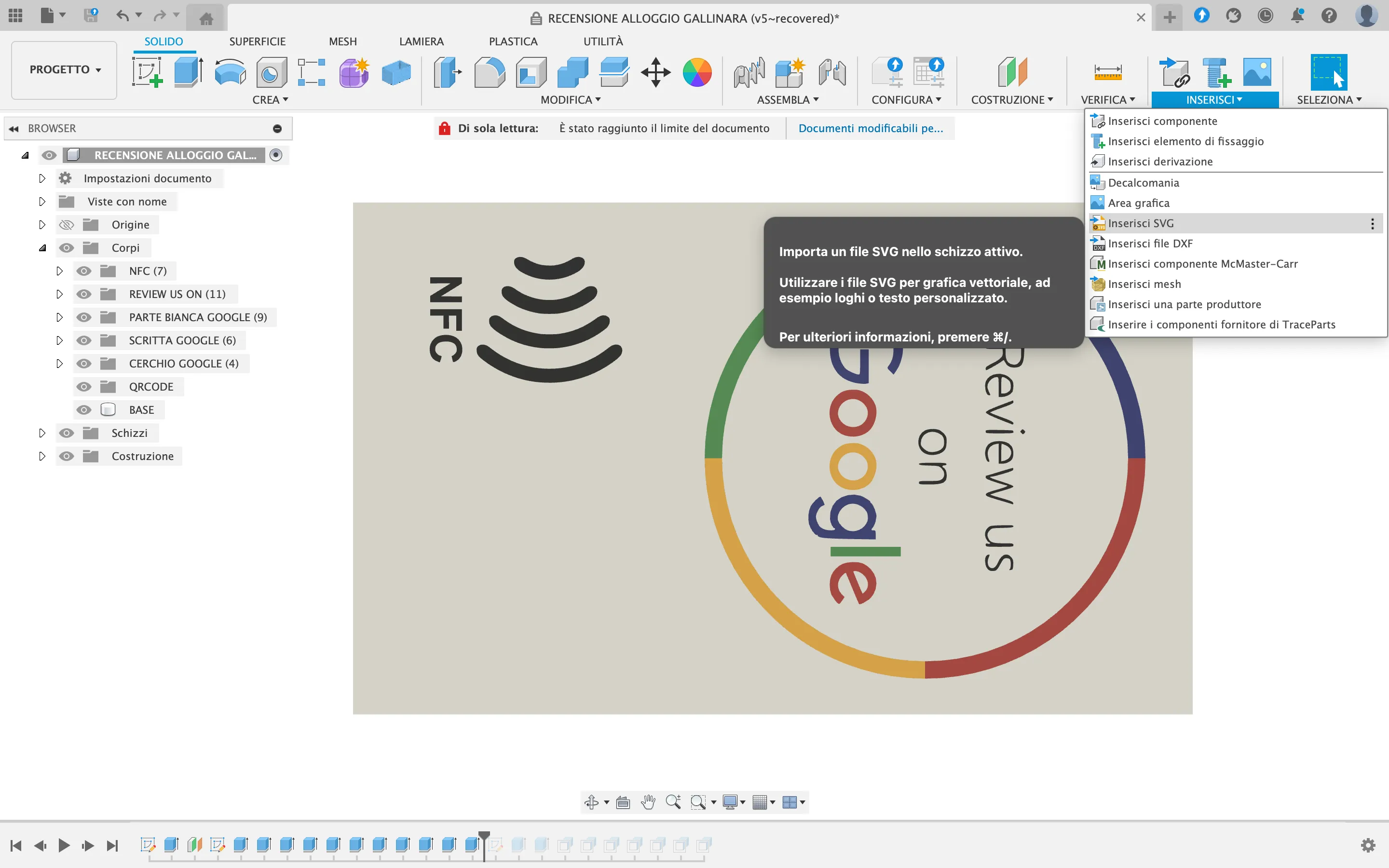

3) Once you have the file in .svg format you can import it into fusion, selecting the correct face.

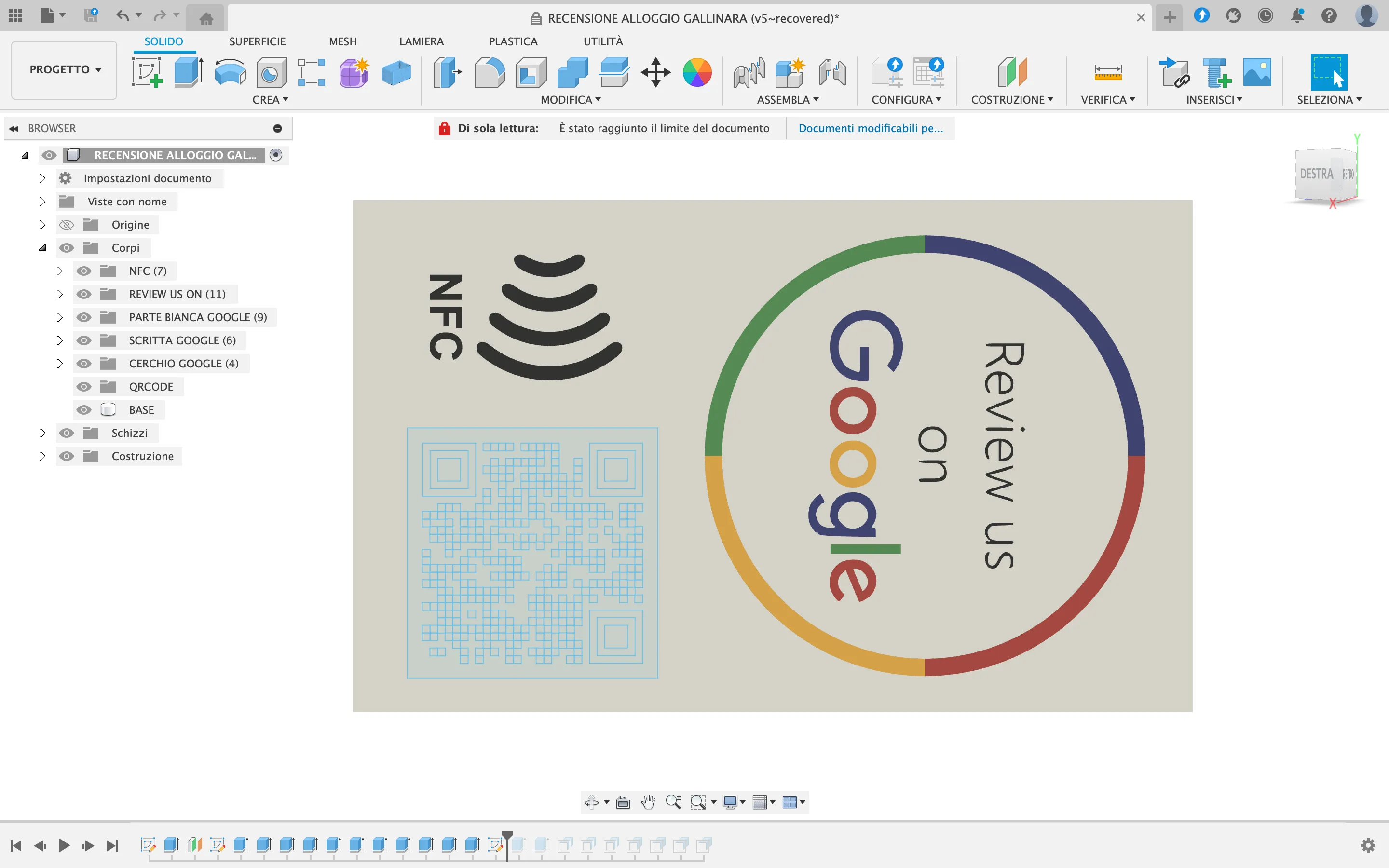

4) Position and resize the .svg image to your liking.

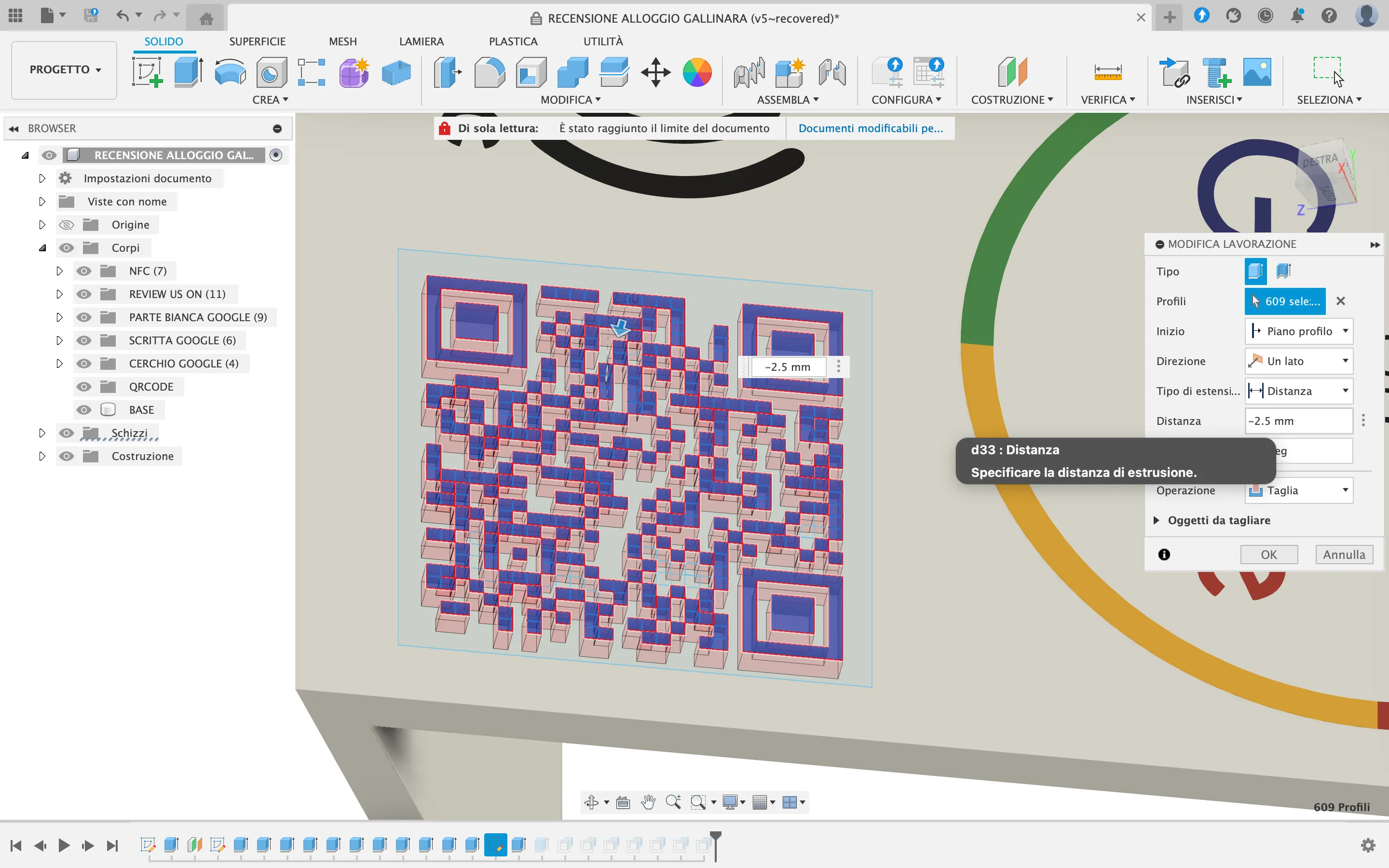

5) Select and cut only the black part by -2.6mm
6) Select the parts just cut and extrude them by +2.6mm by selecting the following operation:
New Body
