Door Handle

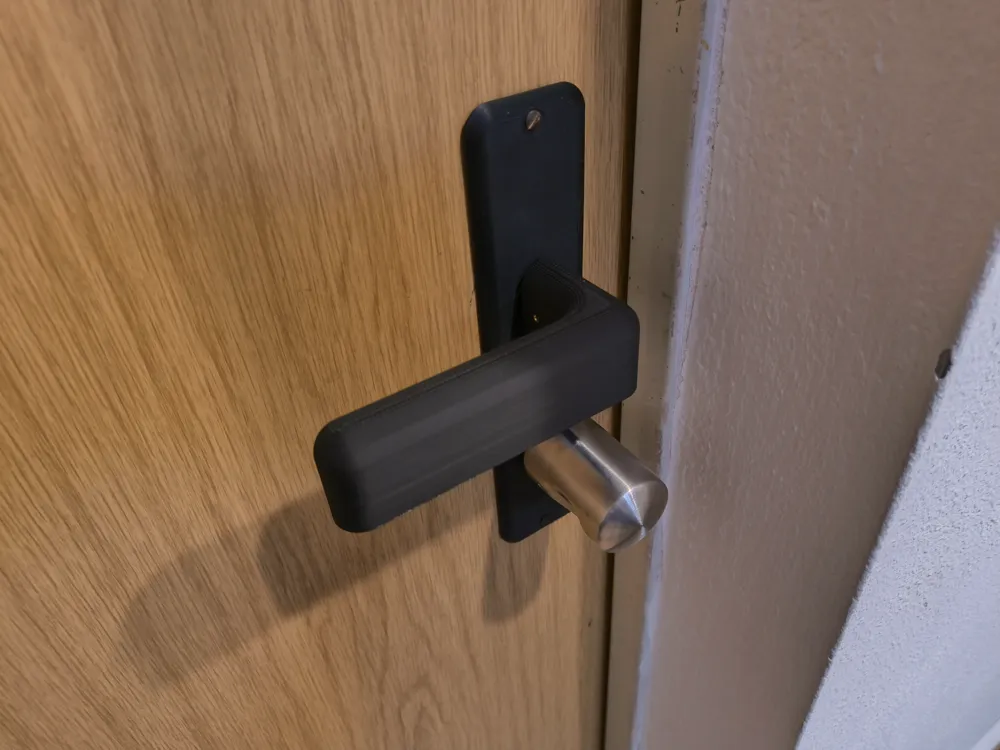

This is a 3D-printable model of a door handle featuring an integrated view screen design. It’s created as a hobby project and provided freely for makers who enjoy experimenting or modifying designs. The model is compatible with standard door lock systems and requires some basic hardware for assembly. Below are the key details about the design and usage:

Key Features

• Two Versions Included:
  • A tolerance-fit version for easy installation.
  • A press-fit version for a snugger fit.
• Hardware Requirements:
  • Standard 8 mm x 8 mm square door pin (length depends on your door).
  • Two M2 screws (18 mm length).
  • Two brass inserts (maximum length 5 mm).

Printing Recommendations

• File Formats Provided:
  • .3mf for Bambu Lab X1C.
  • .stl files for general use.
  • .sldprt SolidWorks files for adjustments or remixes.
• Print Settings:
  • To ensure durability, use more walls, top and bottom layers than the default (e.g., 5 walls instead of 2-3).
  • Materials: Choose a strong, durable filament for functional use.

Assembly Notes

1. Fitting:
   • Attach the handle onto the 8 mm square door pin.
   • Drill through the pin at the handle’s resting position to secure it with the M2 screws.
2. Durability:
   • Reinforcing the structure by increasing wall thickness during printing is highly recommended.

You are welcome to download and experiment with the model. If you’d like to customize or remix it, the SolidWorks files are there to help you get started. This is a hobby project shared for makers and enthusiasts to enjoy happy printing!
