Real Usable Hydraulic Well Model / Water Pump / Pumping Machine

2026-2.23 update print profiles! Increased outer wall thickness, increased top layers to 5

Tested large base, no leaks after one day and night of sitting still! Small base not tested

(Print profiles also updated simultaneously, you can print and test if needed)

2025.1.12 update, thanks to netizen suggestions, the base is more stable and larger! All parts for the enlarged base are uploaded as print profile three

The A1 mini pre-arranged plate is print profile four

The original design remains unchanged, thank you for your support

Perfectly restored the structural principle of a hydraulic well, with a design scheme featuring two one-way valves as the main structure

Installation instructions have been uploaded, please read and watch if anything is unclear, if you have any questions please contact me directly

No accessories needed, just print and assemble to use!

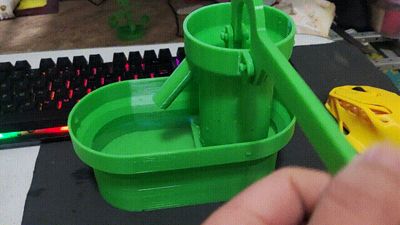

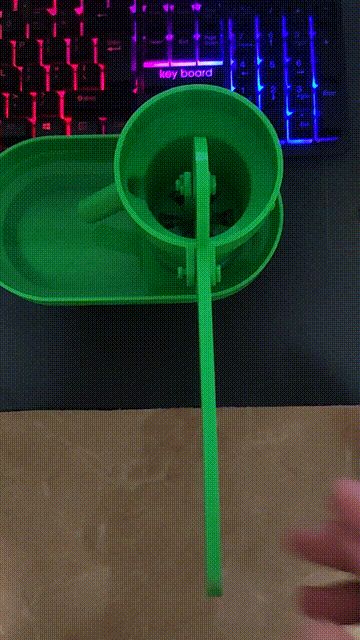

Add water to the tank to the appropriate level and you can directly press to dispense water

No need to add water to the top for sealing!

1. Both top and bottom have limit designs, no need to worry about the one-way valve getting stuck due to excessive angle

2. Reasonable clearance is reserved, up and down movement is smooth

3. All shaft positions are designed to be printed in high-strength X, Y directions, no need to worry about Z-axis strength causing breakage!

4. Add water level to the bottom of the upper large circle, then you can directly press to dispense water

5. Super large water flow channel, super large water inlet and outlet volume, continuous water flow! Even pressing up and down does not affect the water output!

6. The upper and lower one-way valves have strong sealing, even without pressing the handle, the water in the barrel will take a long time to drop into the tank!

6. The upper one-way valve is Print in Place, reserving reasonable clearance while also ensuring a super large water intake!

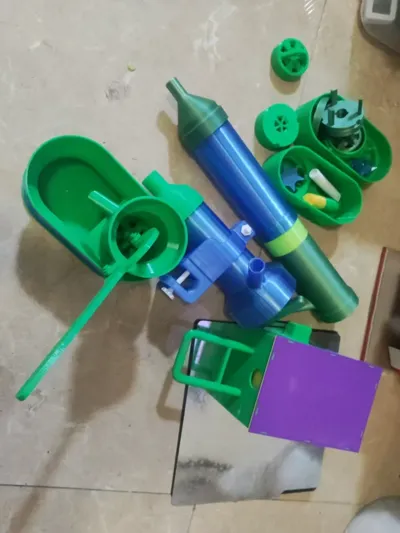

I created a water wheel that can be used with this model to add fun, interested friends can visit my homepage or click the link to enter

https://makerworld.com.cn/zh/models/837947#profileId-823033

Thank you again for the support of all the experts! Your ratings and comments are my motivation for creation! Thank you again

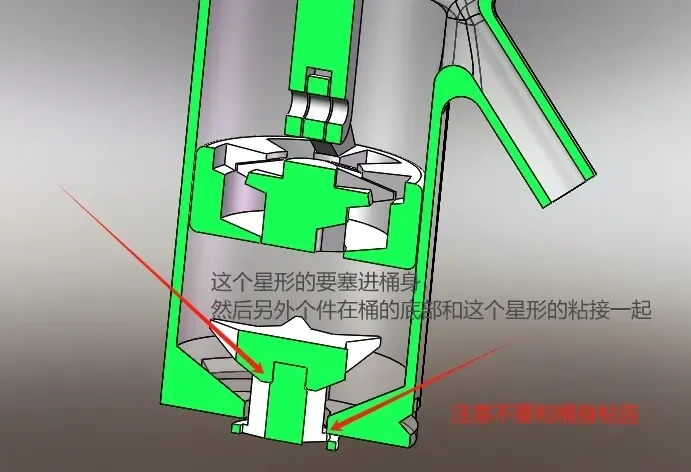

The two images below are schematic diagrams and cross-sections for the installation of the one-way valve that needs to be glued, please be careful not to glue the barrel body!!

7. No supports

(The upper one-way valve part may have some adhesion in the Z direction when printing, after removal, press to detach, this will not cause sticking in other directions!)

All assembly methods are snap-fit installations, the barrel body is a rotatable snap-fit installation

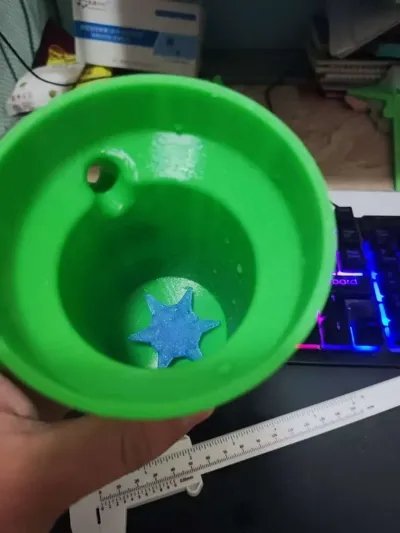

Only the lower one-way valve requires glue for adhesion, just install according to the pictures (due to the small position, it is recommended to glue carefully to avoid sticking to the barrel wall)

(Several snap-fit installations were tested and none were ideal, will test and upload files multiple times later)

A pragmatist, not good at writing copy or making videos, the actual effect is much better than the demo!
