Year of the Snake Window Lattice 3D Paper-Cut Relief Painting: Welcoming Spring and Receiving Blessings

An original design, this model features a three-dimensional paper-cut style traditional art relief painting

Optimized slicing parameters: 0.08mm layer height, 5-color print. AMS is not required; manual filament changes suffice

Two size profiles are available: a large size (230mm x 230mm) for P1s printing, completing in just over five hours; and a smaller size (170mm x 170mm) for A1 mini, finishing in under four hours

Manual 5-color printing yields the most accurate representation of the original image (the above image displays the final 5-color print). For a 5-color print, adjust the slicing to pause at layer changes, manually switching filaments at each pause (four changes in total). If using AMS and you prefer to avoid frequent changes, you can omit the last color change, resulting in a 4-color print with slightly reduced fidelity

Filament colors required:
Black, blue, red, yellow, white (optional)

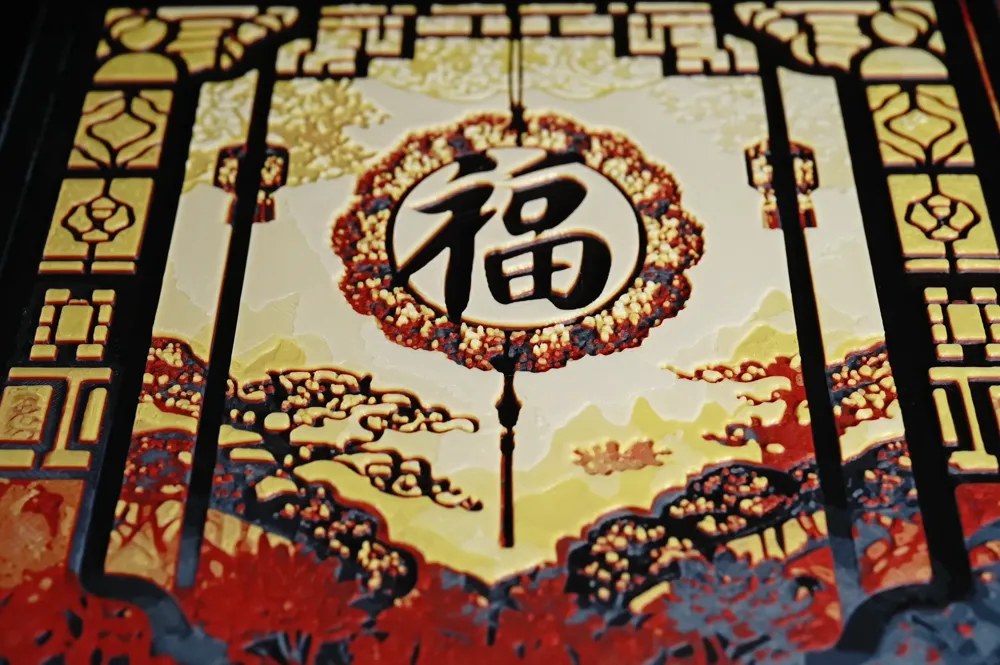

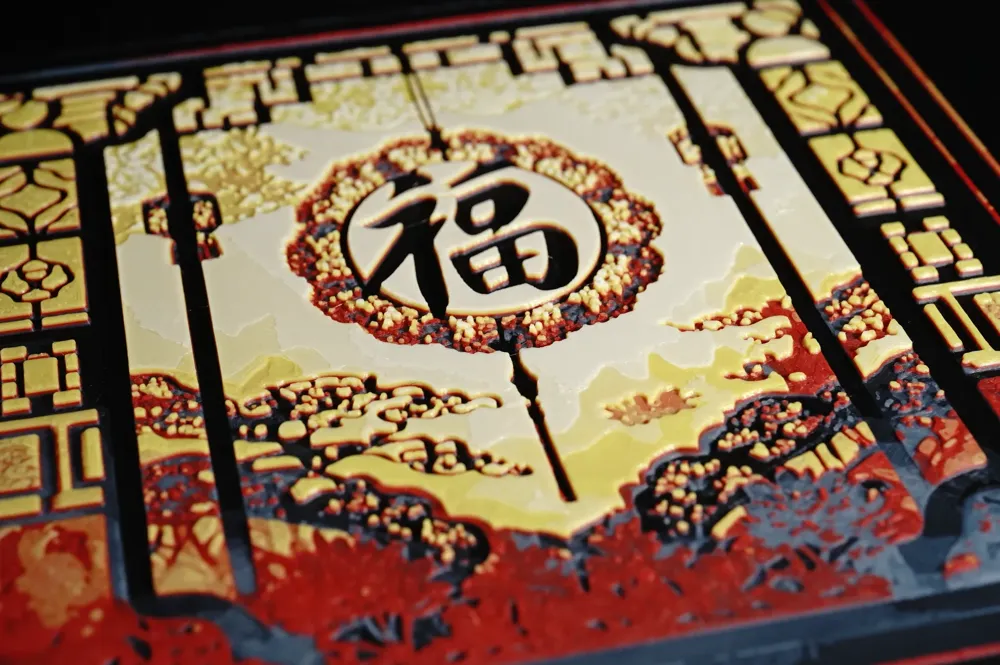

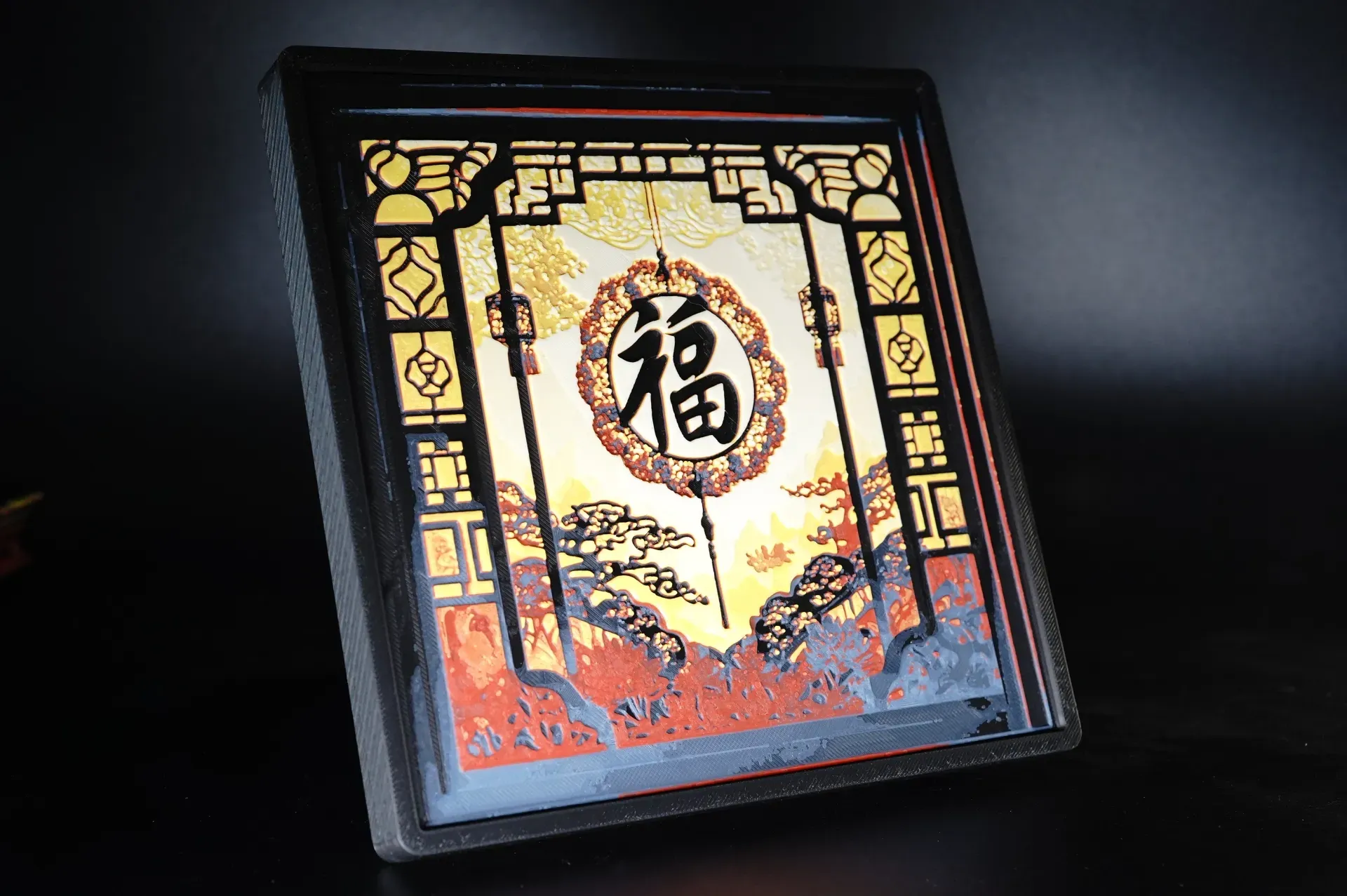

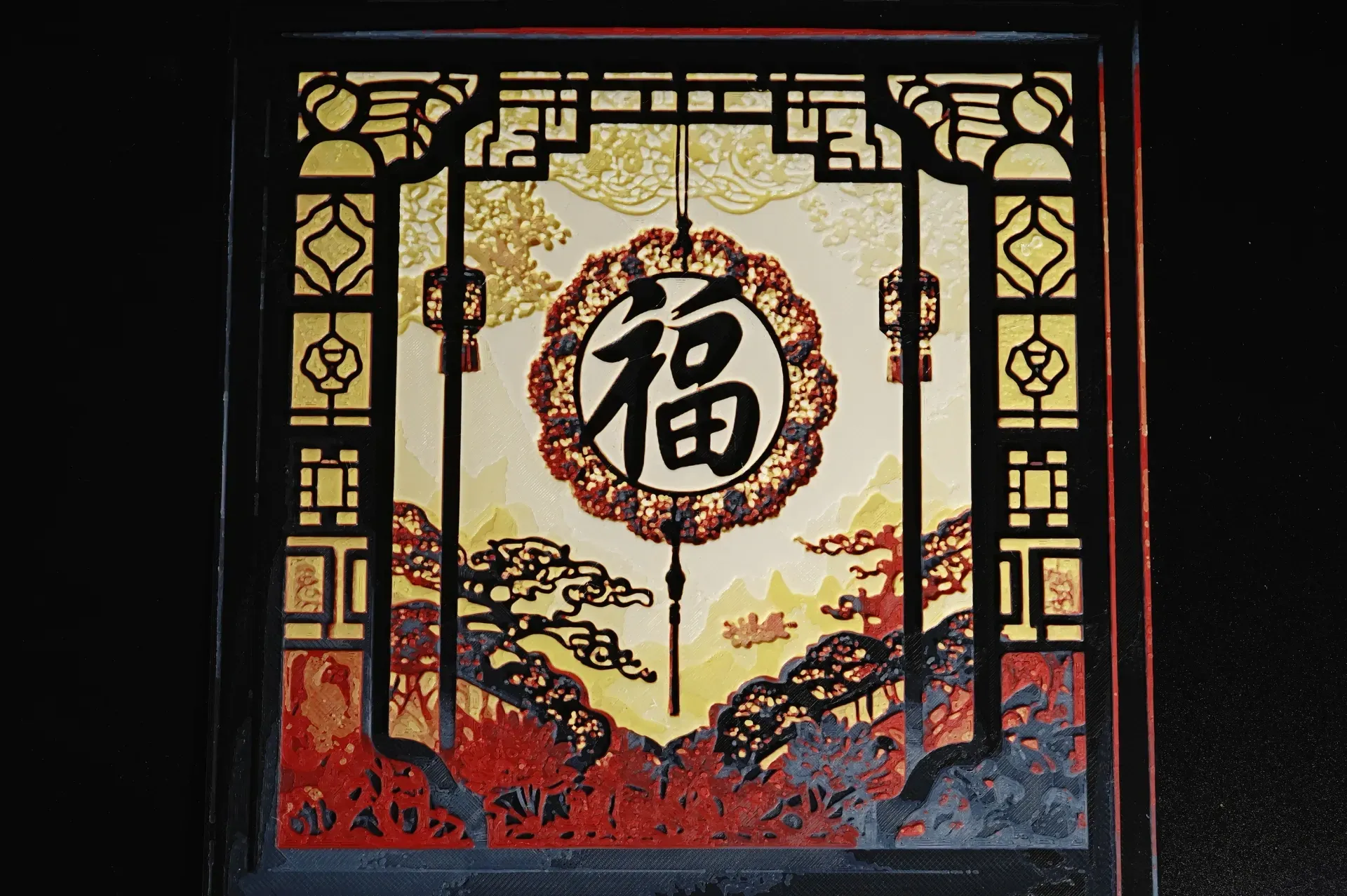

Both PETG and PLA are compatible!!! PLA is recommended for optimal results!!!! Finished print photos are shown below

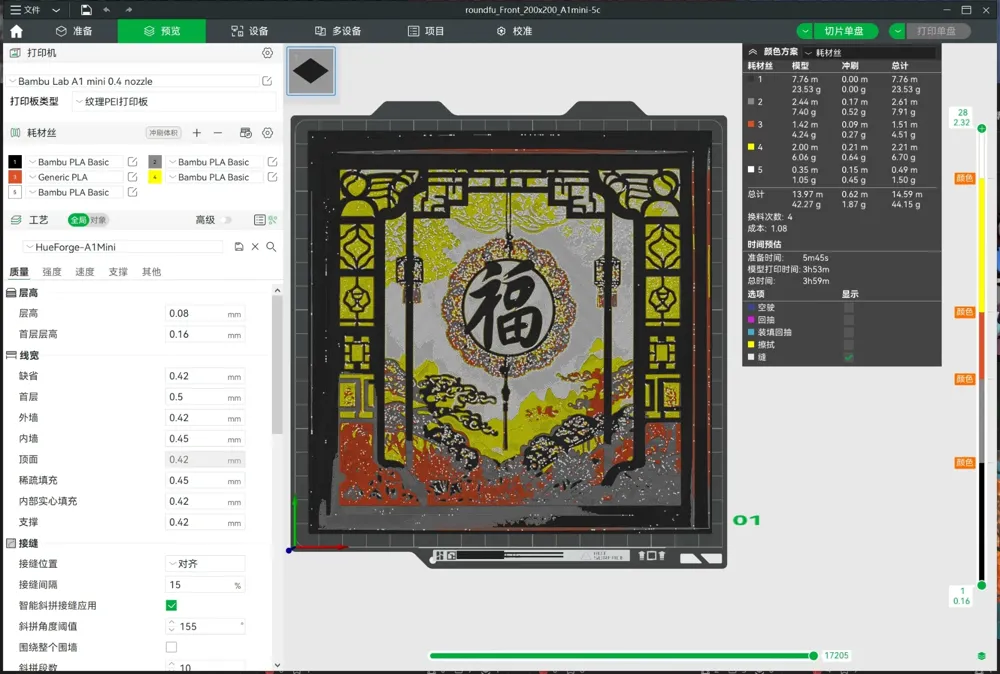

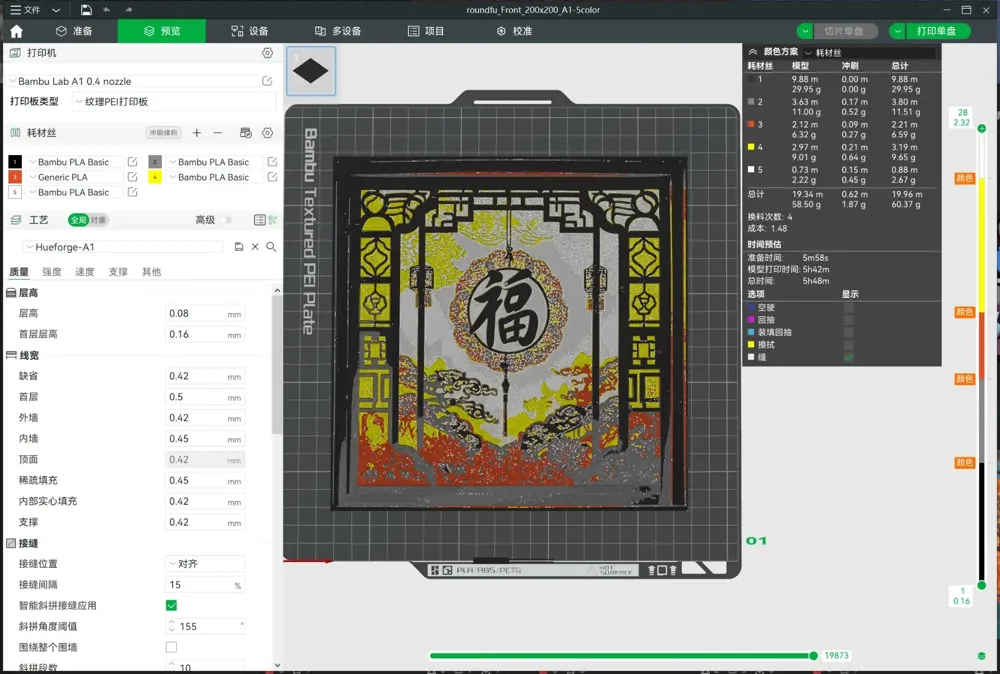

Manual slicing or non-AMS users: filament color and change instructions:
Black base layer, switch to blue-gray at layer #8 (0.72mm)
Switch from blue-gray to red at layer #13 (1.12mm)
Switch from red to yellow at layer #17 (1.44mm)

Switch from yellow to white at layer #25 (2.08mm)

For AMS users who wish to minimize filament changes, delete the last color change (at layer 22, 1.84mm) in the slicing preview (effectively using yellow from layer 16 to the end of the print)

Experiment with alternative color schemes and preview the results in your slicing software

For tabletop or wall-mounted display, download the model below to print a frame. This integrated, support-free design perfectly complements both sizes of relief painting

https://makerworld.com.cn/zh/models/838112#profileId-823255
