Fan Filter for Enclosure intake
Print Profile(1)
Description

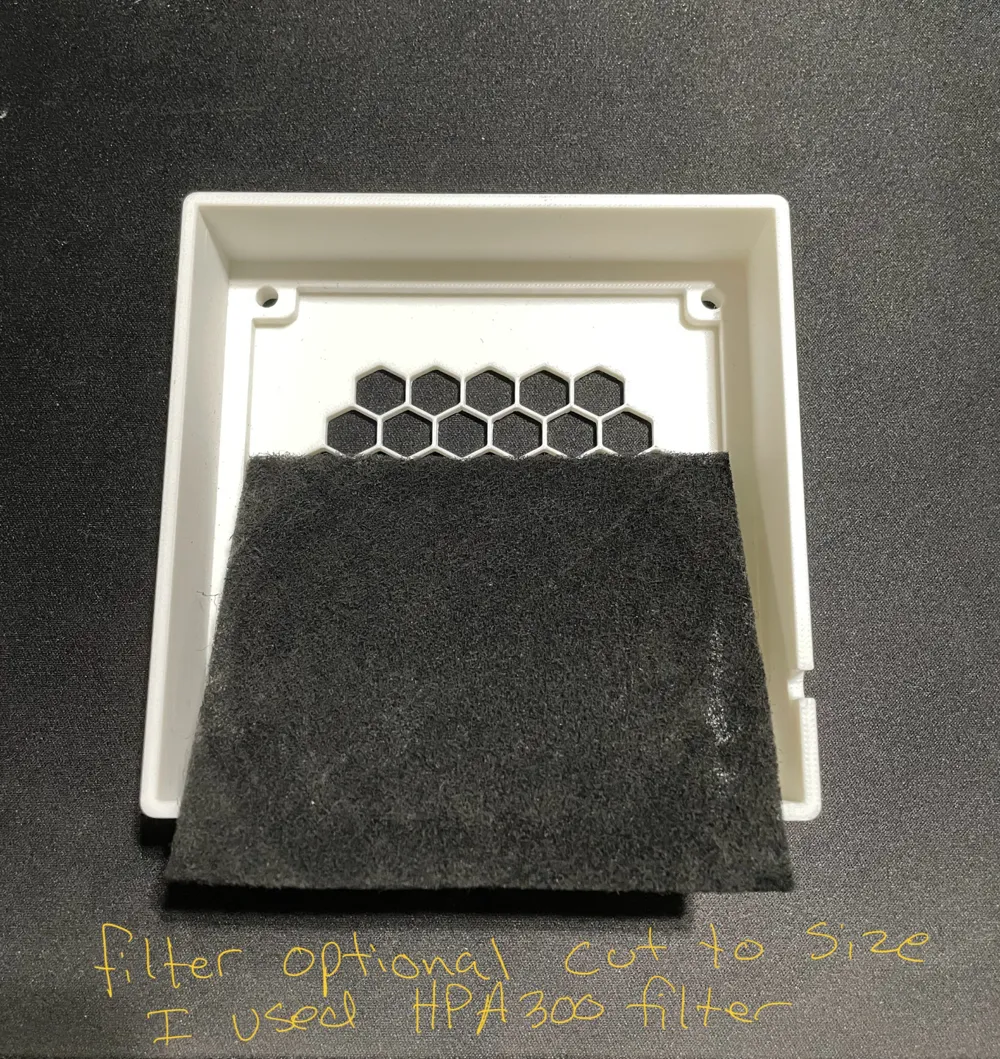

Fan intake cover for enclosure with optional carbon filter.

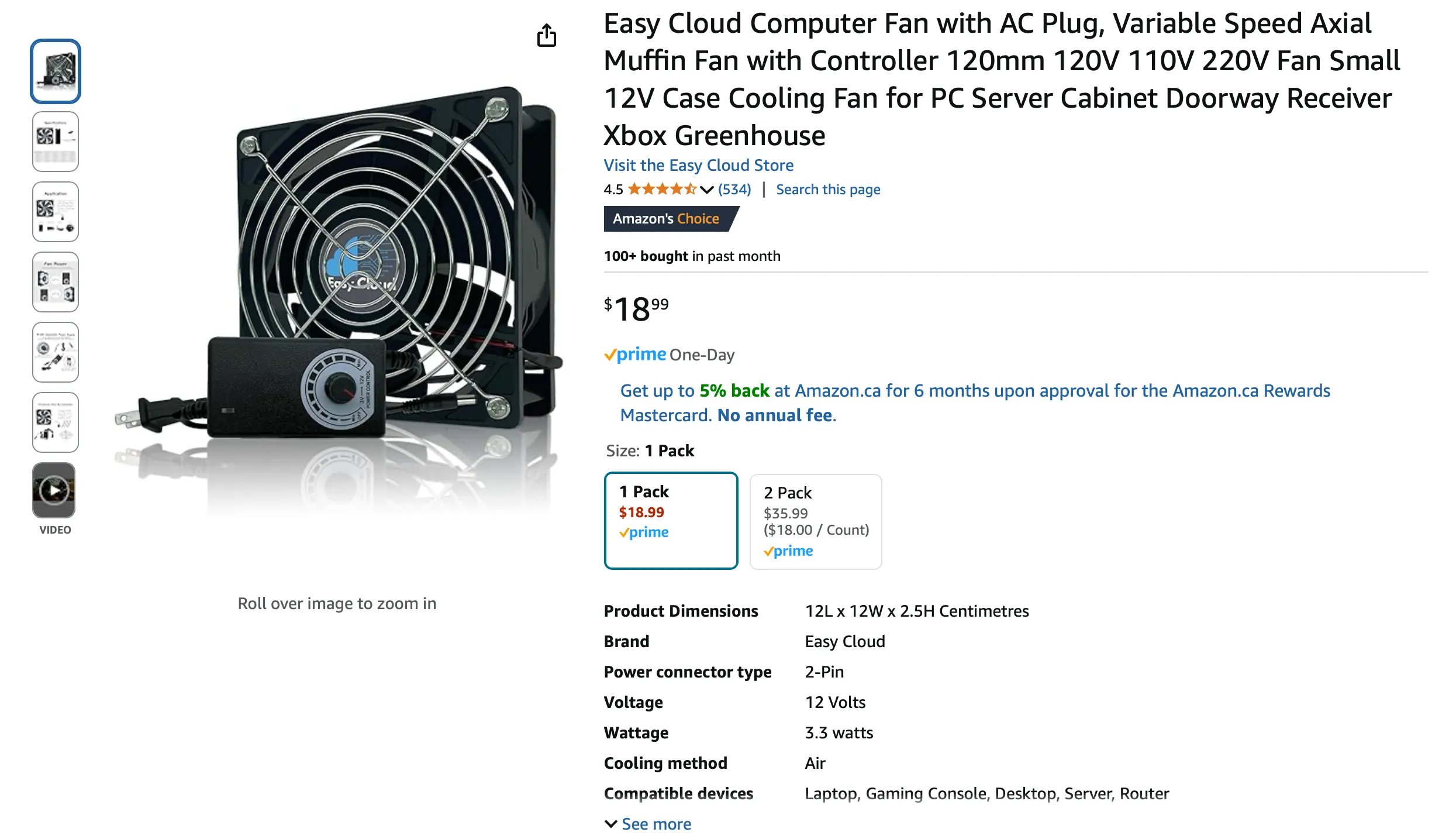

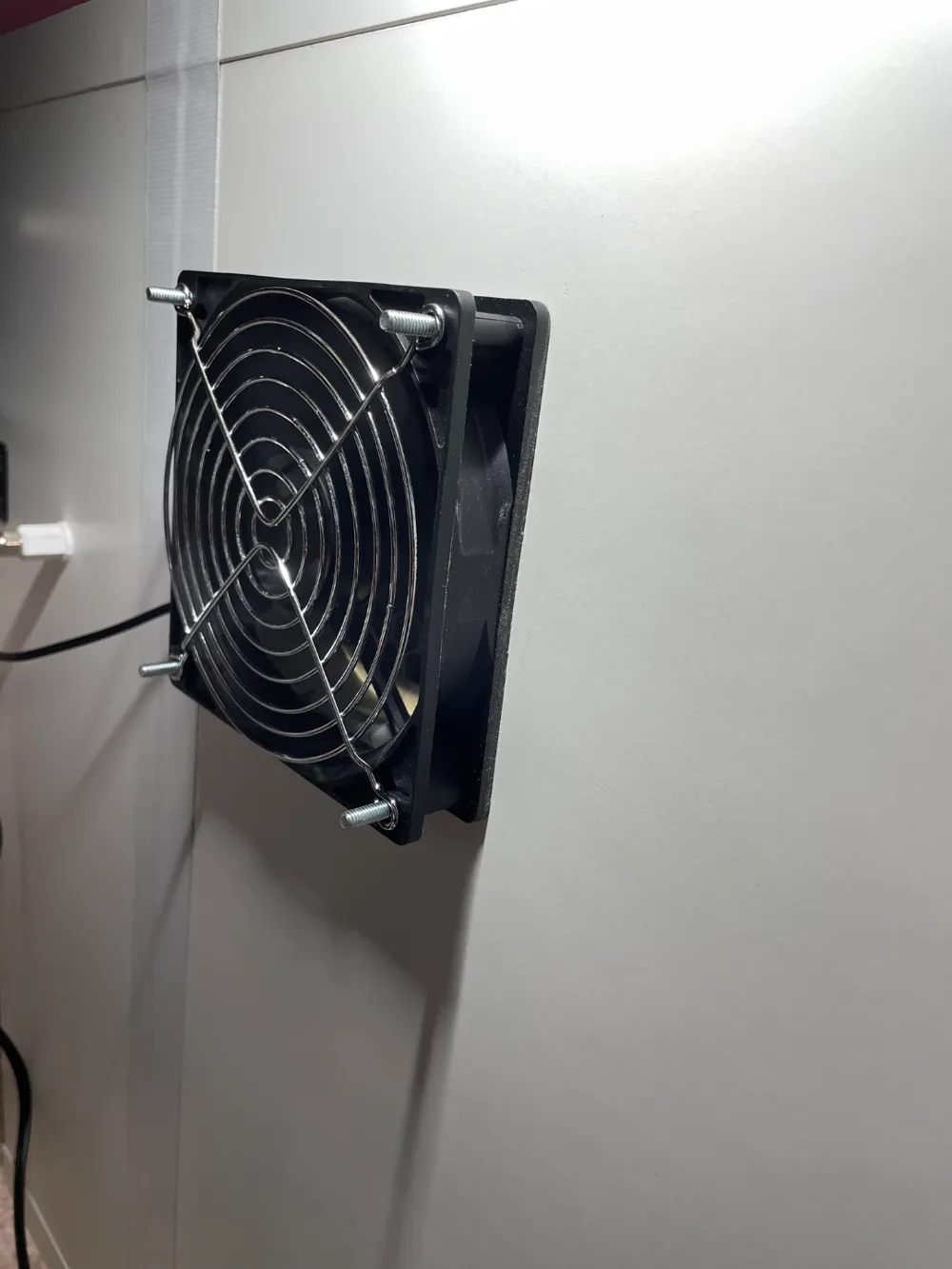

Used a PC fan that you can buy from Amazon that can be adjusted from low to high speed.

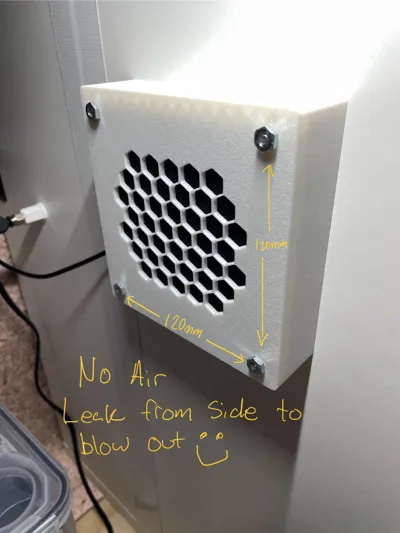

It is common that some air leak out from the side even tho it was supposed to blow air in.

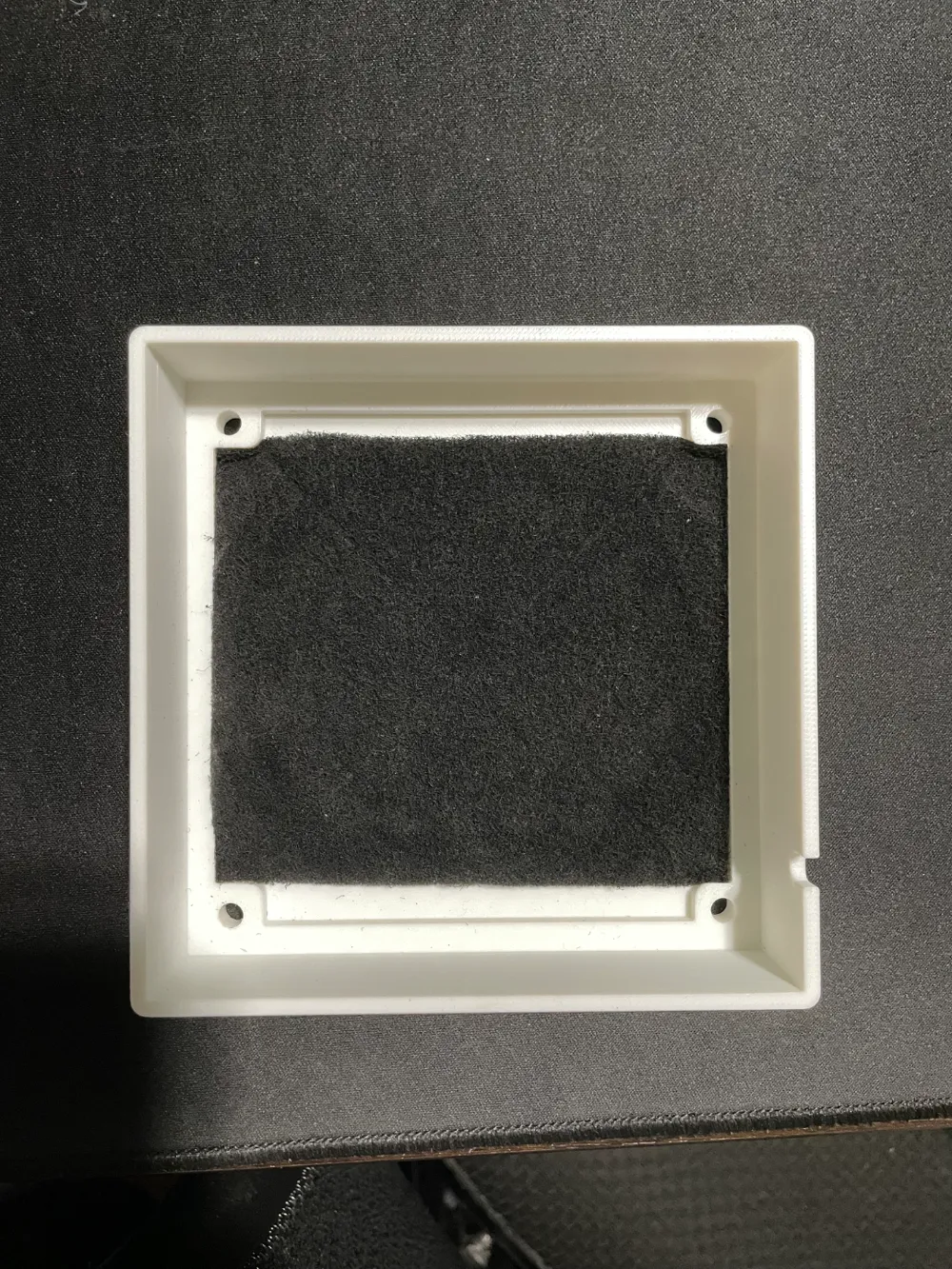

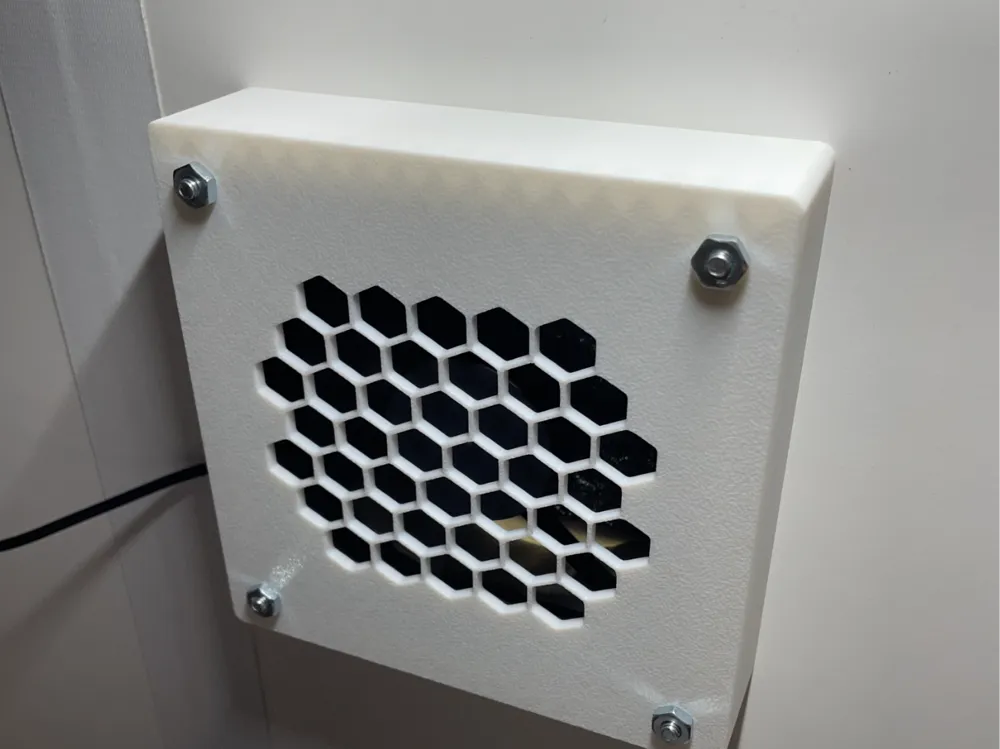

Made a cover to fix that issue with optional filter to be placed inside.
Screw/bolt distance 120mm x 120mm.

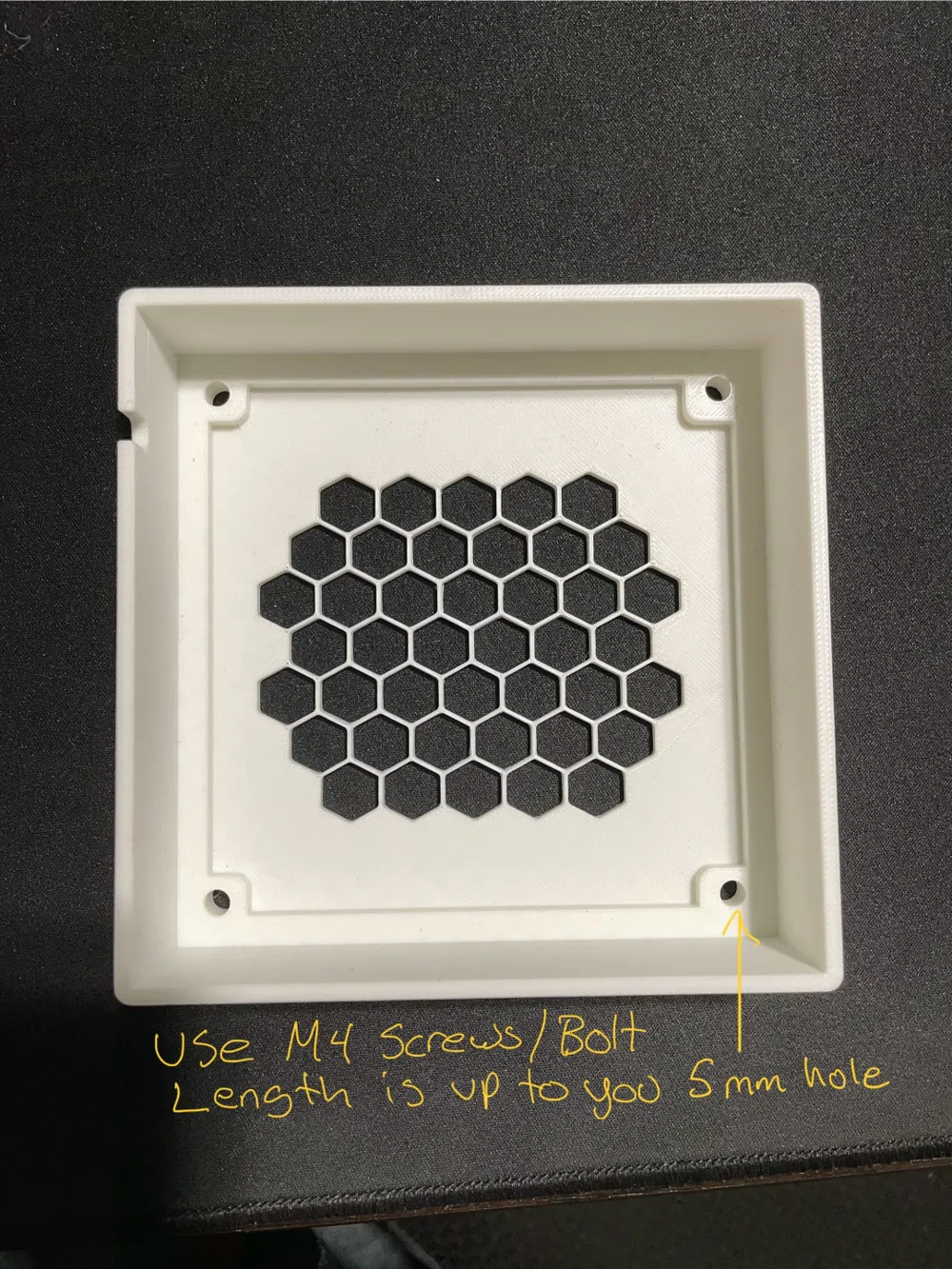

Used M4 bolt and length is on how thick your enclosure wall.
I search all over google and Bambu lab for a cover fan filter but could not find any.
This is my first model please be gentle to me :)
