Apex Evo DJI O4 Air Unit Pro Antenna and Camera
Print Profile(2)
Description

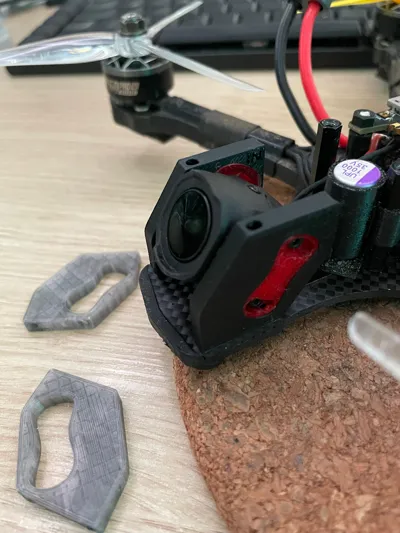

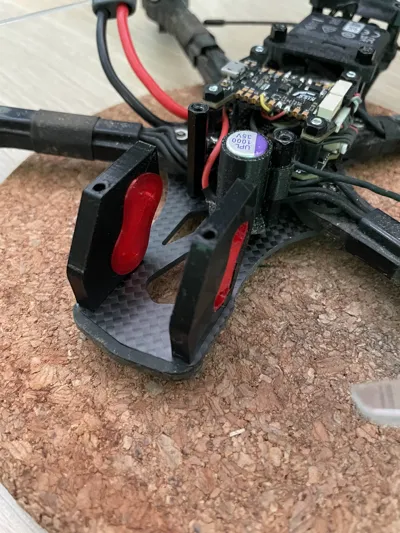

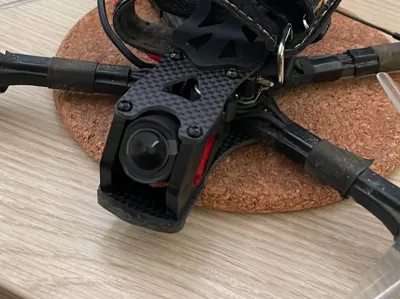

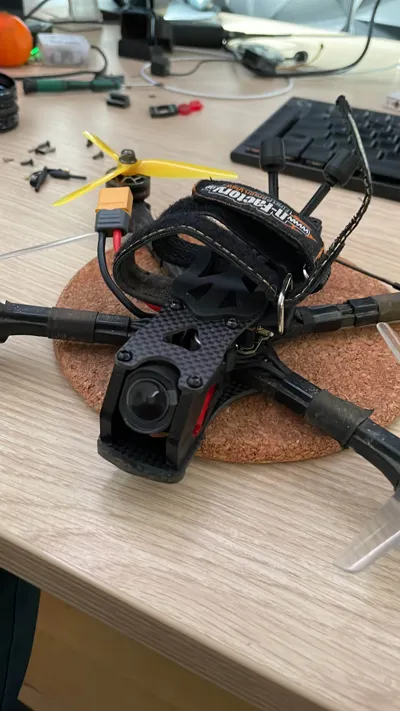

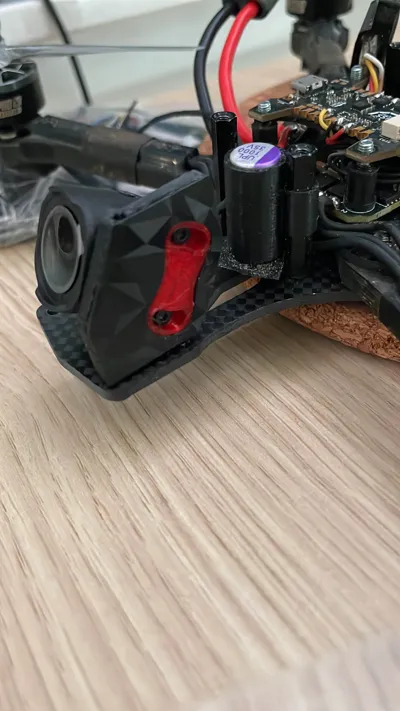

Based on the newly released DJI Air Unit O4 Pro, we designed parts for the Apex Evo, which include a mount for the camera as well as a dual Antenna mount.
Updates:
Short eplenation about RX files:
- R1 = Solution with pin

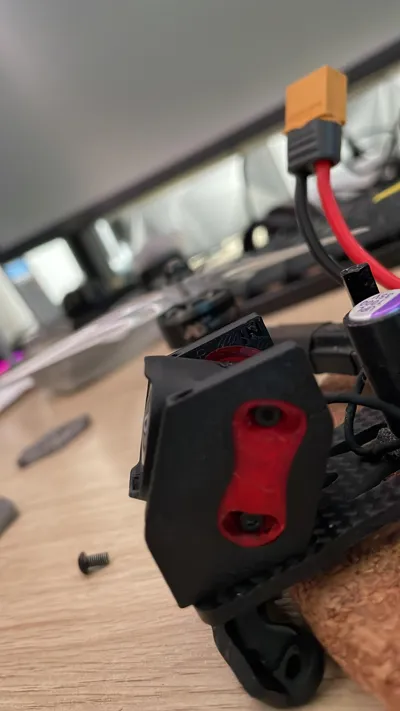

- R2 = Solution with screw hole
- R3 = ND-Filter compatible (please report / comment if it's to far out!)
- Cam R2 = 30mm Center to Center (R1 is 32mm)
→ Both solutions works, I personally use the screw whole version. :)
→ I Printed the bracket in PETG and its solid as hell / screws are tight that you cant spin them at the end. Test flight in regards to jellow follows.
- We recommend printing the parts with TPU
- You need to mirror the bracket and the inlay on X-Axis

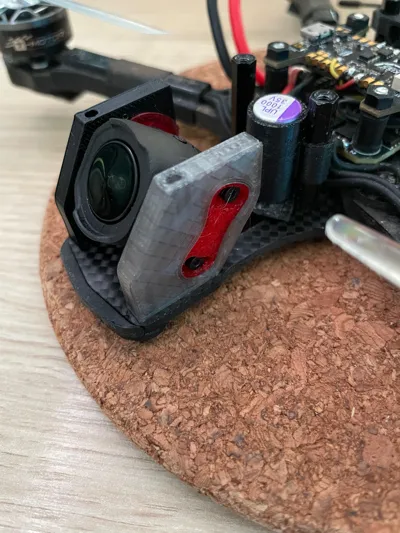

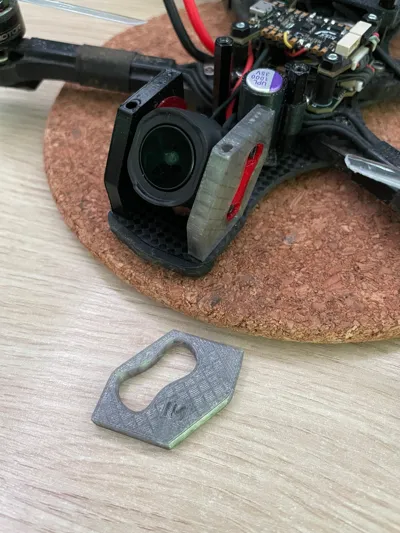

- Inlay Infill ~15% TPU (Jello protection)
- Bracket infill 60-80% TPU OR any PETG 30% / PLA
If you have any questions remarks, tell us :D
Buy us a beer: https://paypal.me/DanOFPV
Greetings,
Fragyman, Fr4nkie & DanO
