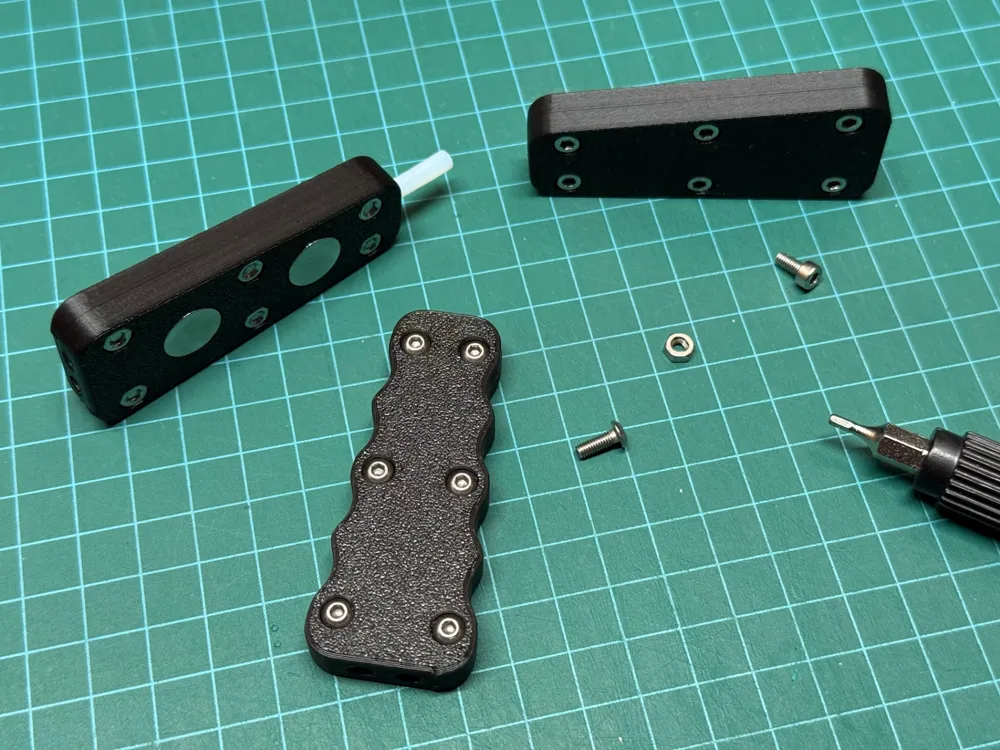

PTFE Y-Splitter

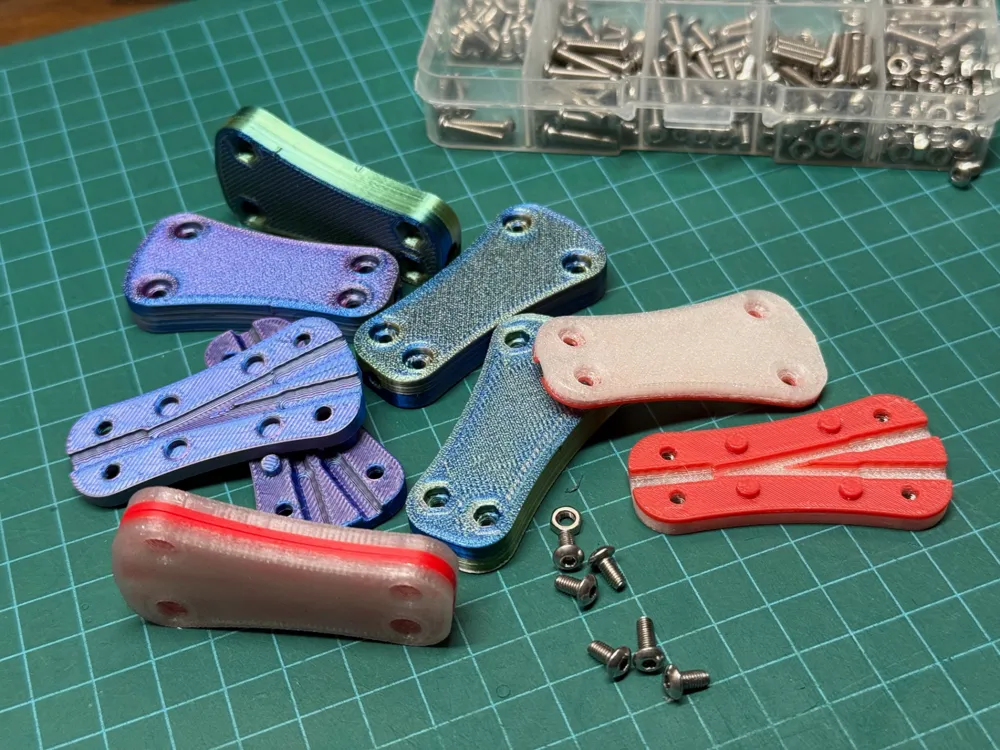

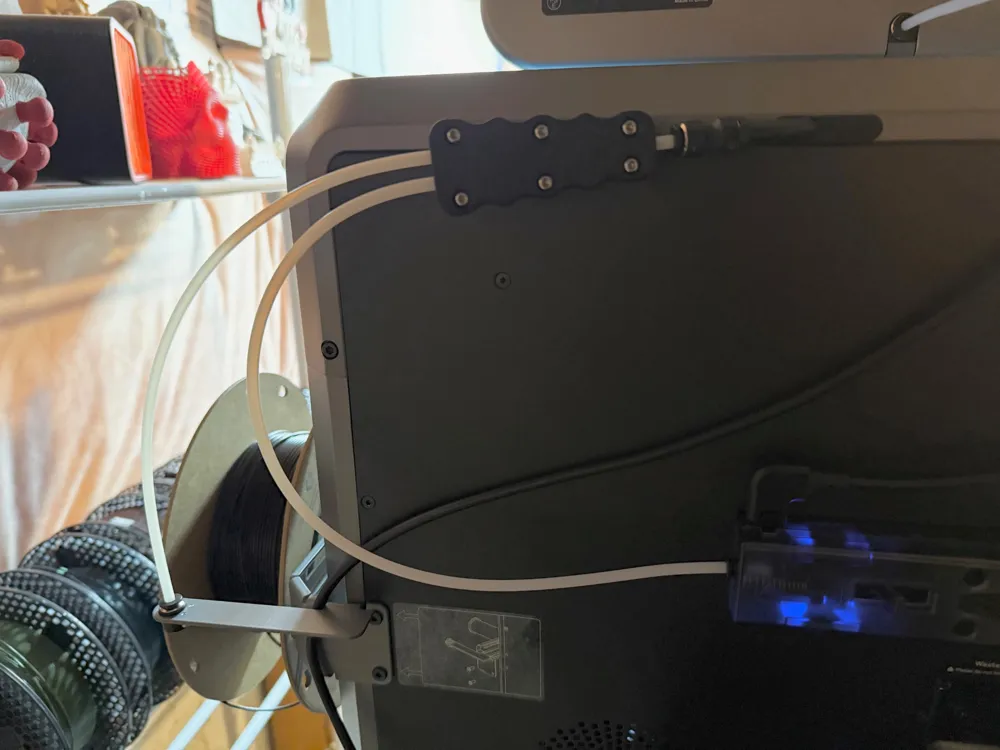

Hey everyone, I made a simple PTFE Y-Splitter for my Creality K2 Plus and CFS or Bambu Lab AMS. This means you won’t have to switch tubes between the CFS and the Spool Holder anymore. Feel free to use it if you need it, and have fun!

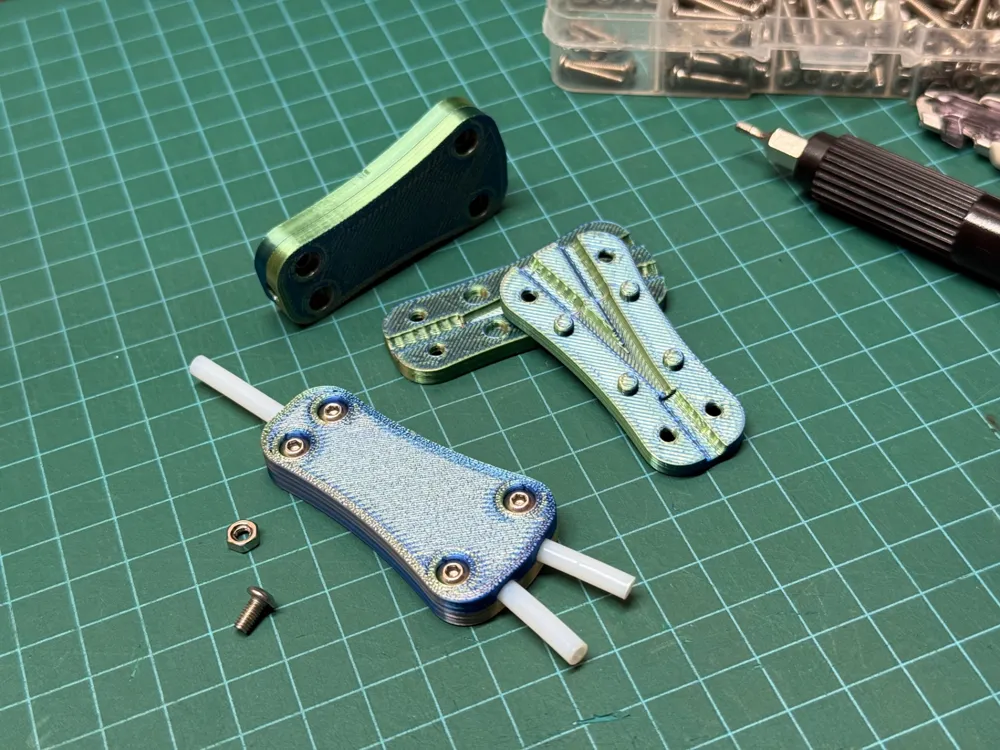

You will need - 6 - M3 nuts

                      - 6 - M3 Pan head 8mm or M3 Socket Head 6mm


                      - 2 - 12x2mm magnets if you'd like

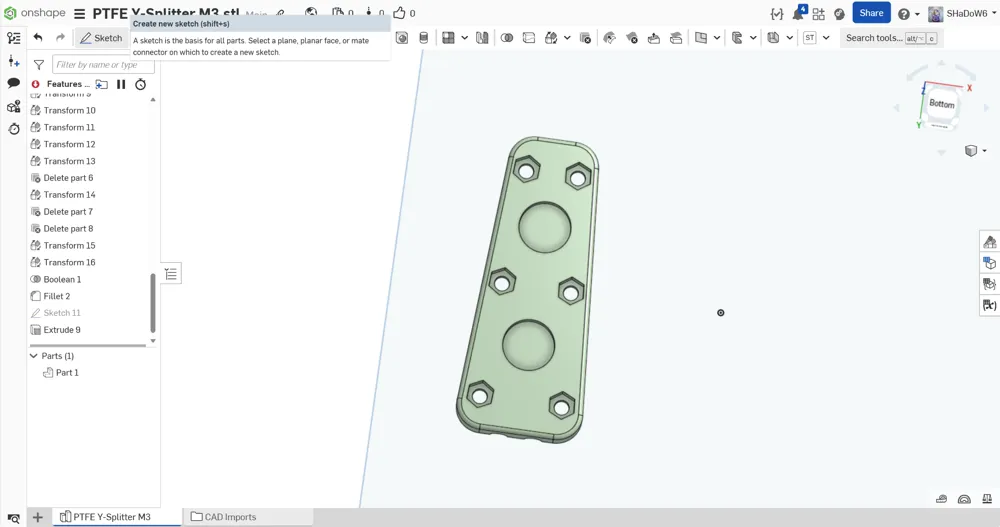

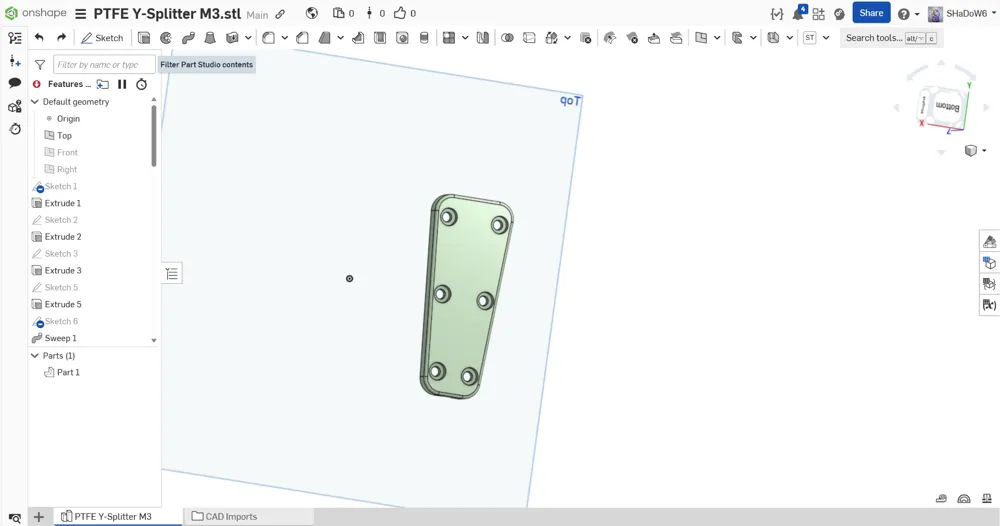

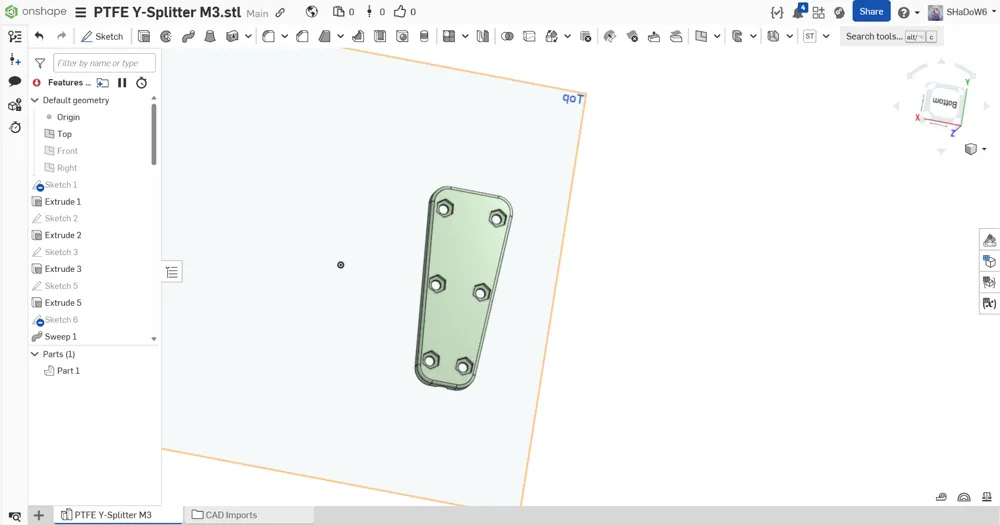

Pick the matching TOP to go with your size screw.

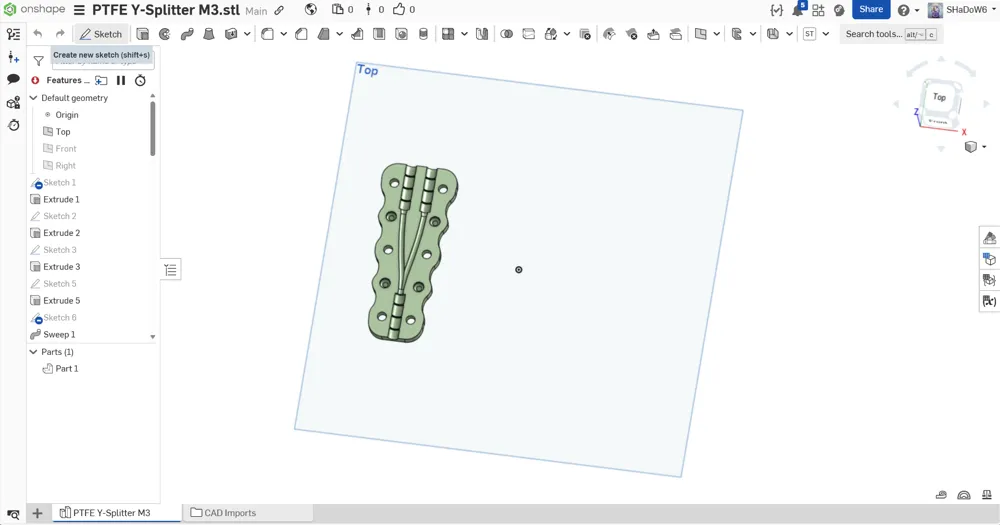

Update Jan/09/2025 - A new V2 design has been added with an improved 3mm pathway to ensure less restricted filament movement.

Update Jan/12/2025 - Added a Mini Y-Splitter, very small yet has a 3mm pathway like its V2 big brother for unrestricted filament movement.

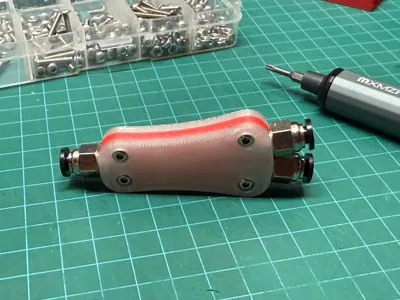

Updated Jan/15/2025 - I’ve added PC4-M6 threaded push fittings to the Mini Y-Splitter for quick removal if needed.
