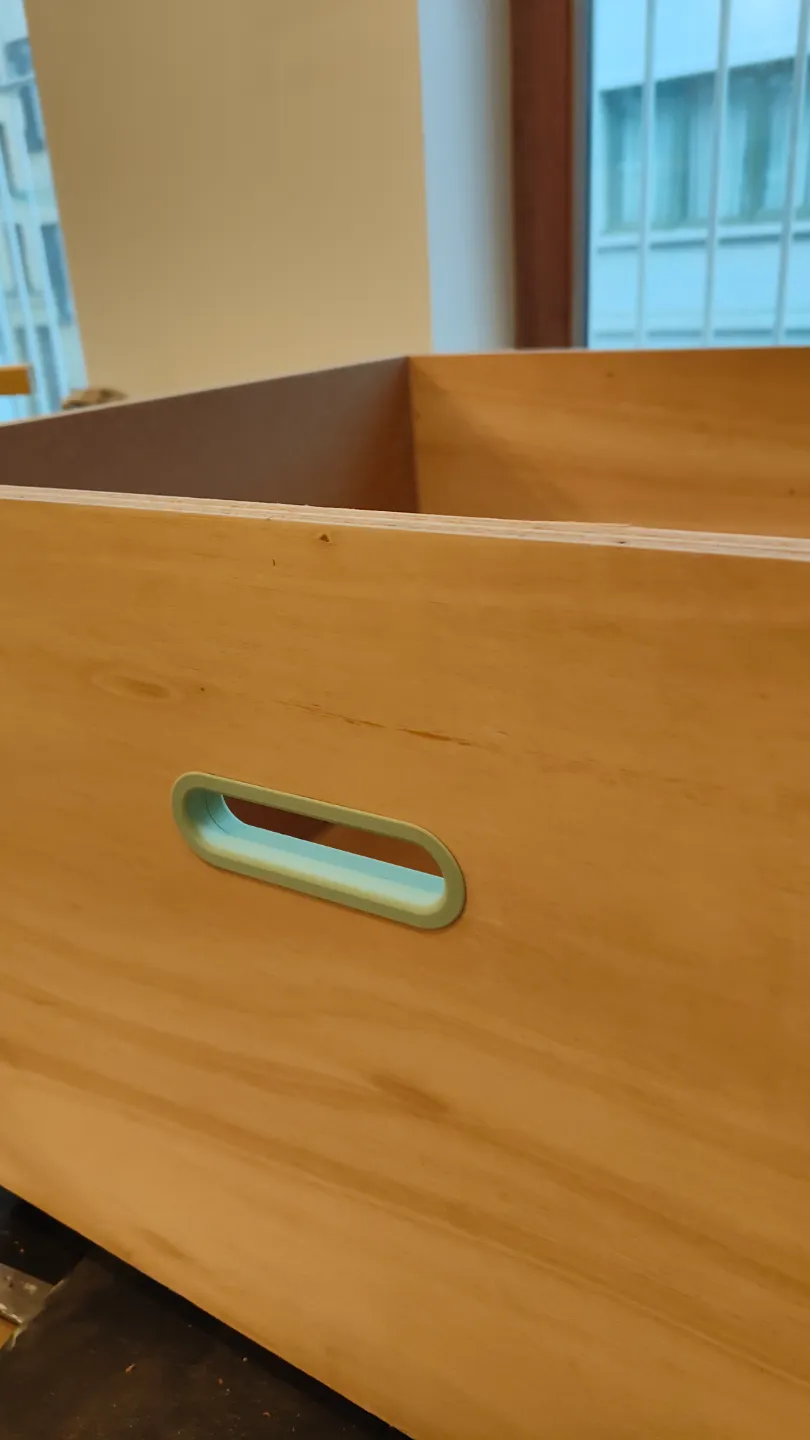

I designed and printed a router jig and these handles to use on large  rolling cabinets and doors made in multiplex.

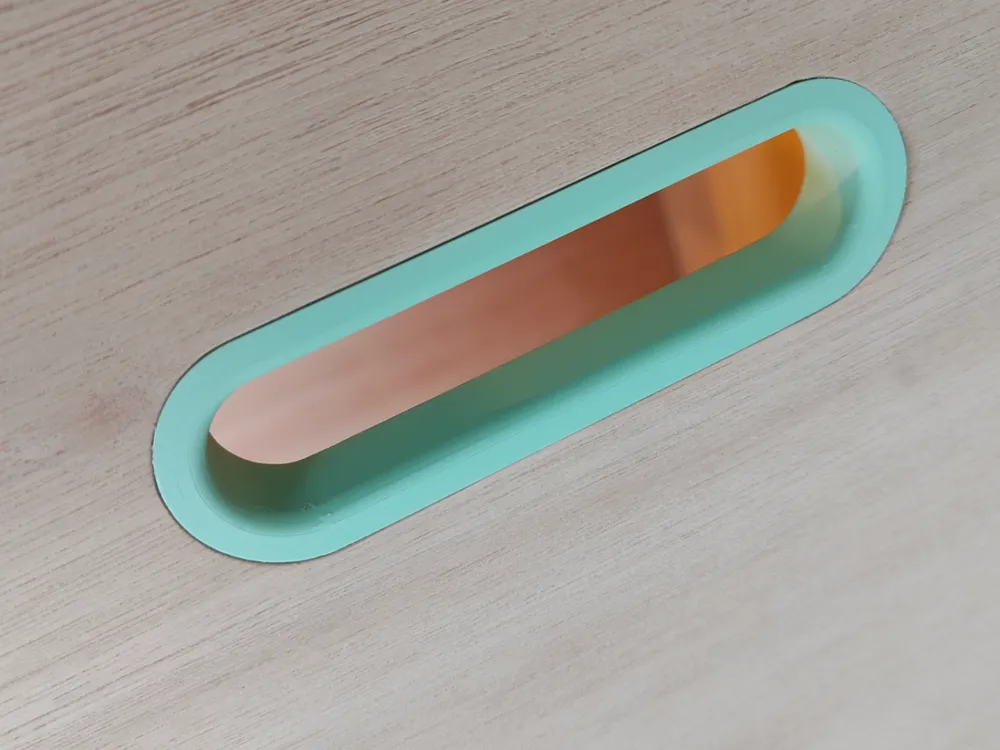

First use the router jig to cut the hole and then use these 3d printes elements to finish, this looks and feels much nicer than the multiplex sides and allows you to add a touch of colour on your project. These would also work nice on other object. Please share your makes.

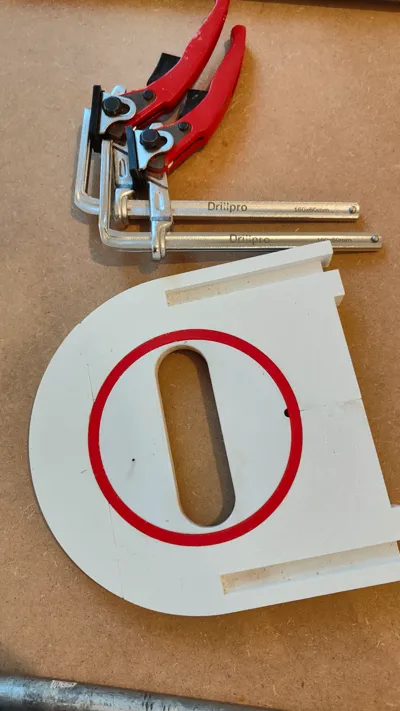

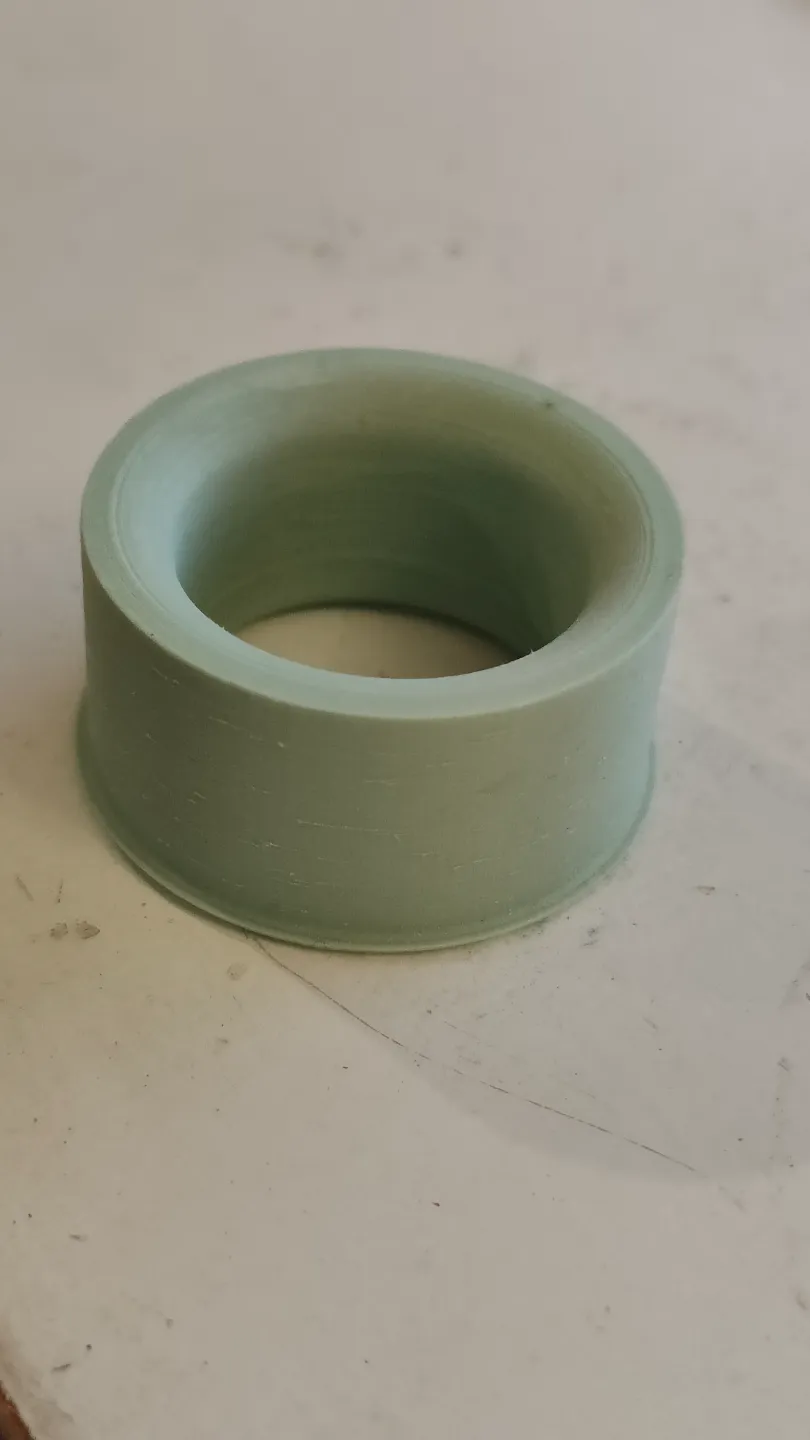

The router jig has cutout space for rail clamps so you can clamp it down while keeping the top surface completely flat. By using a larger jig with circle hole it's easy to swap the center disc out for discs with other shapes you might want to cut out.



I made a V2 - second version of this handle that is smaller and with the back closed and a lip for better grip see here:https://makerworld.com/en/models/1292304-minimalist-furniture-handle-with-router-jig#profileId-1322768

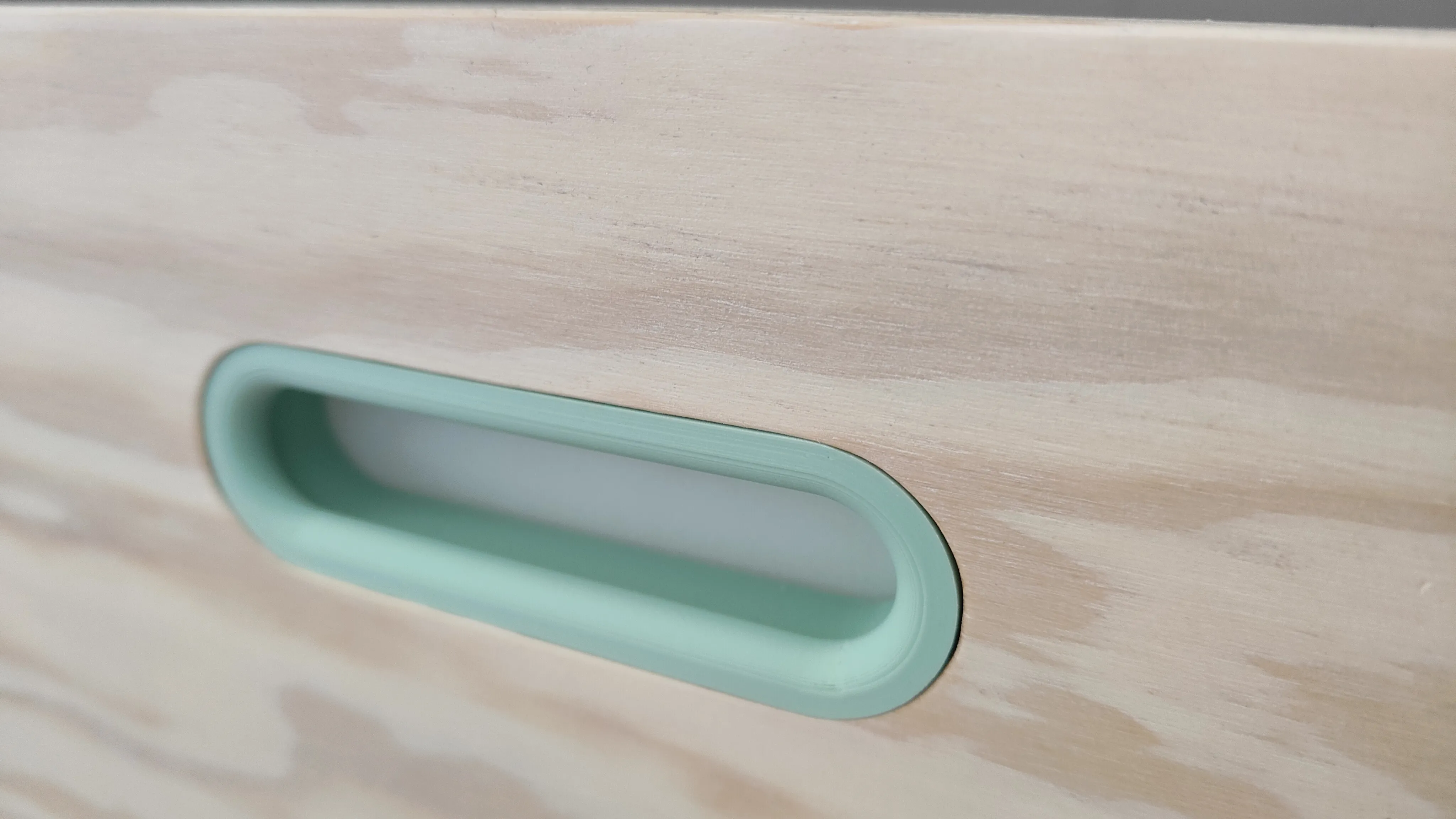

V2 is smaller, closed and has a lip for better grip
