Drill Dust Collector and Vacuum
Print Profile(1)
Description

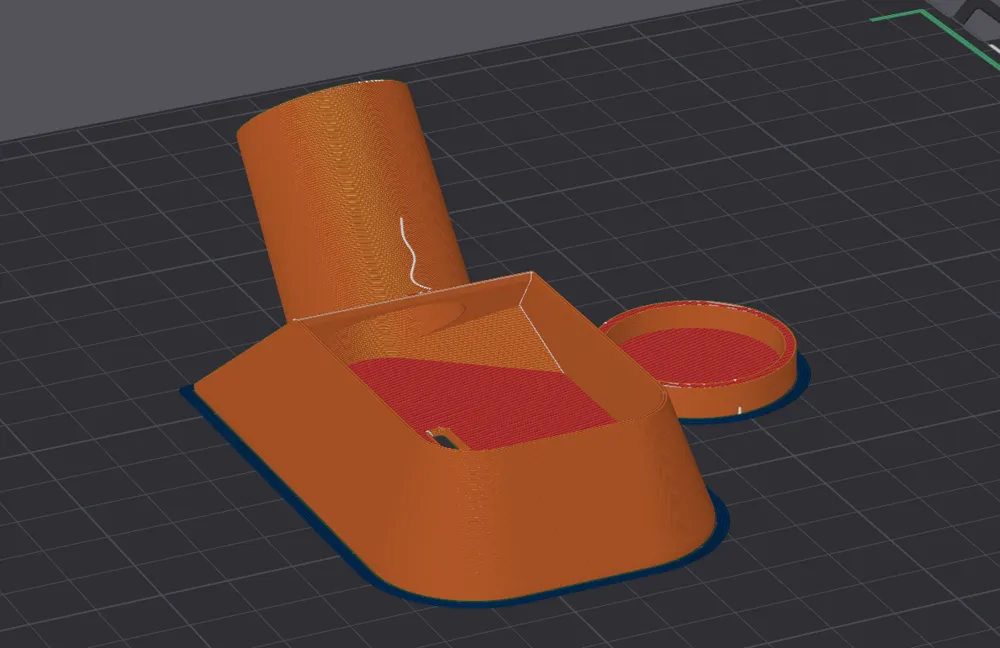

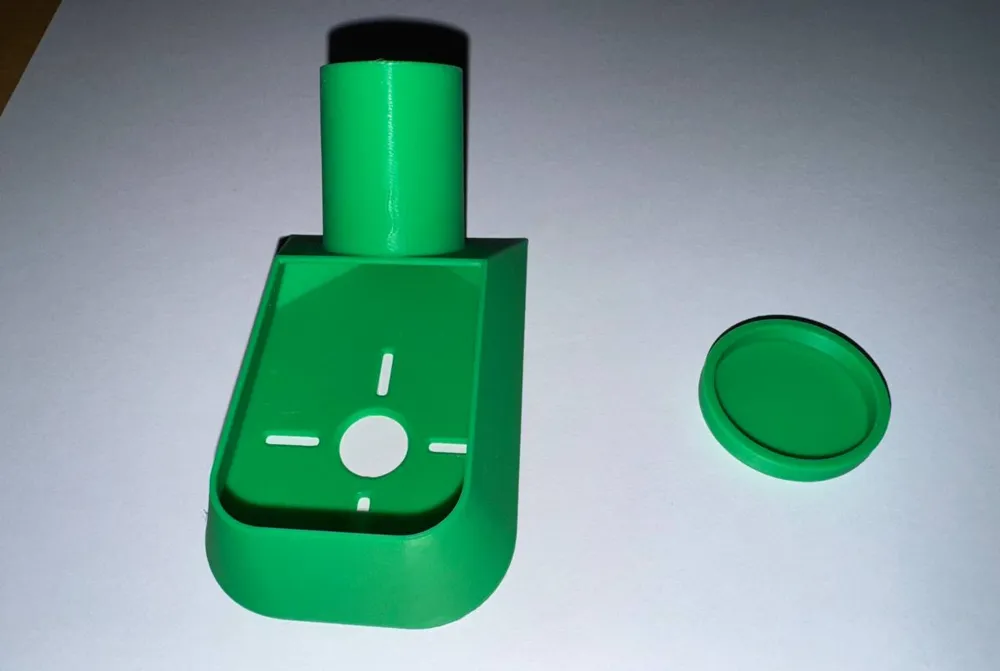

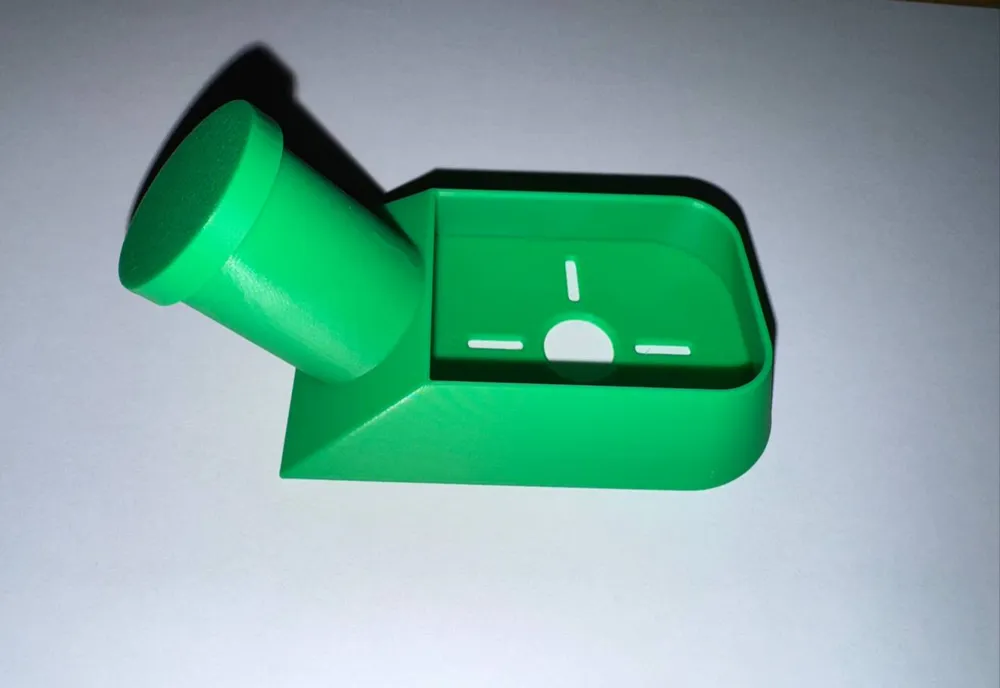

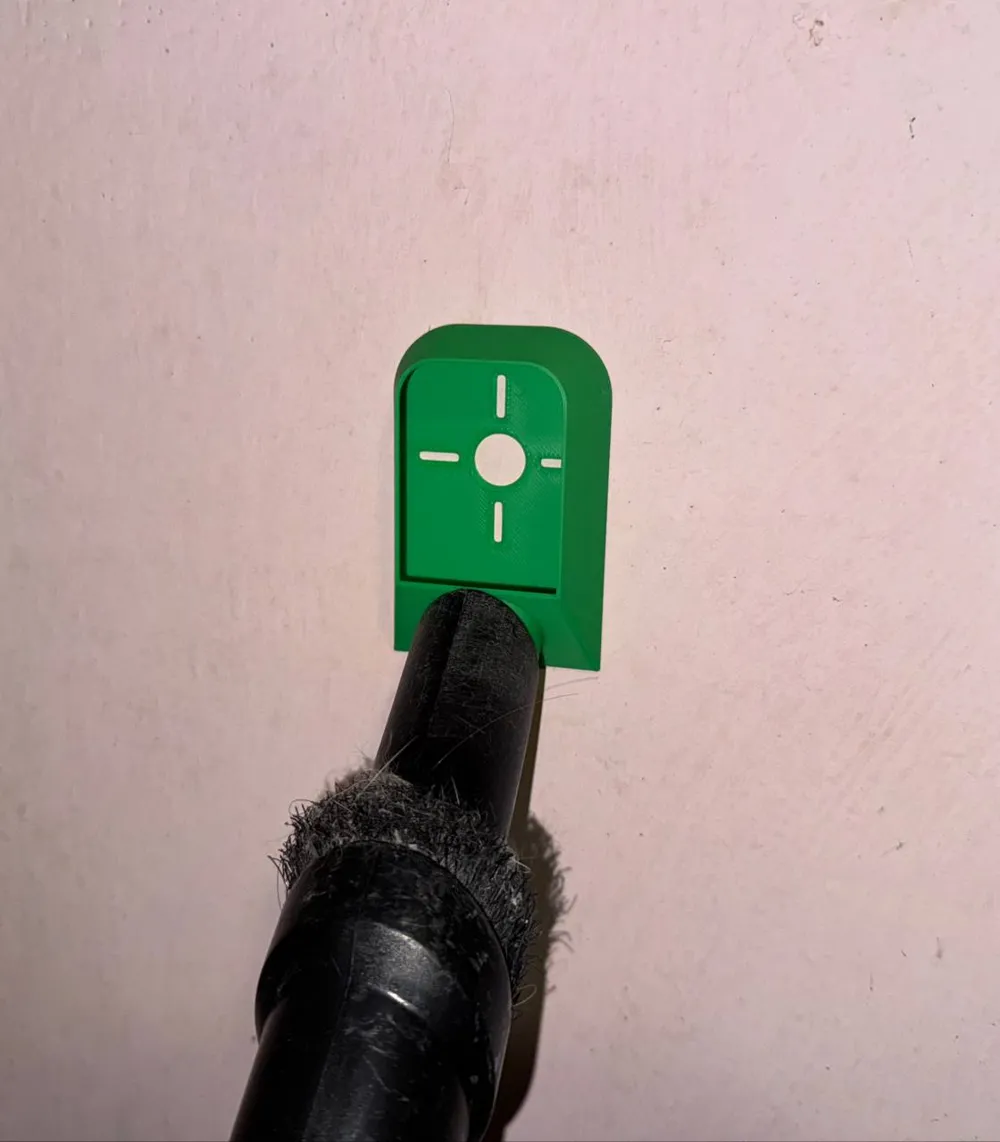

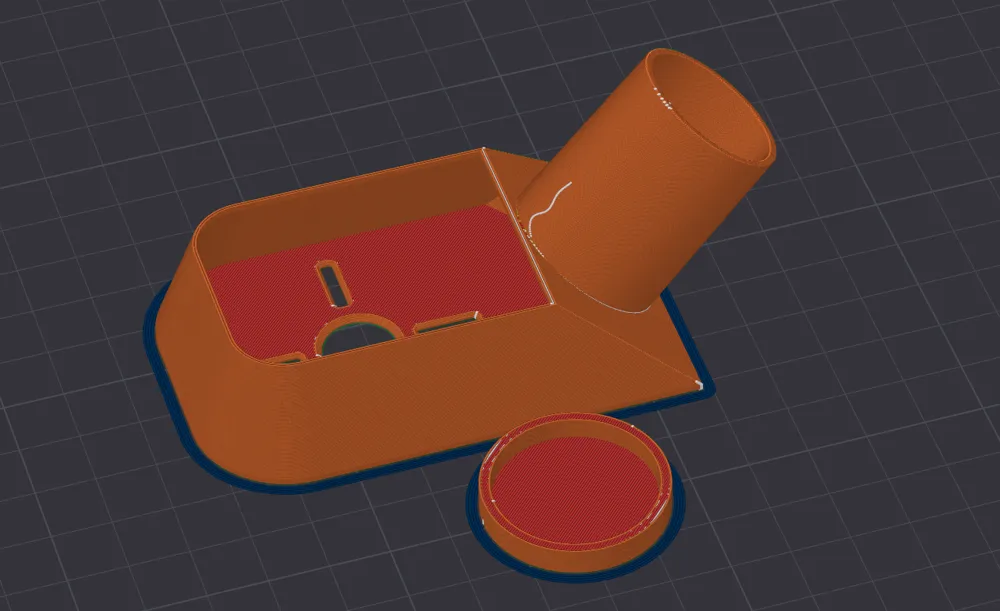

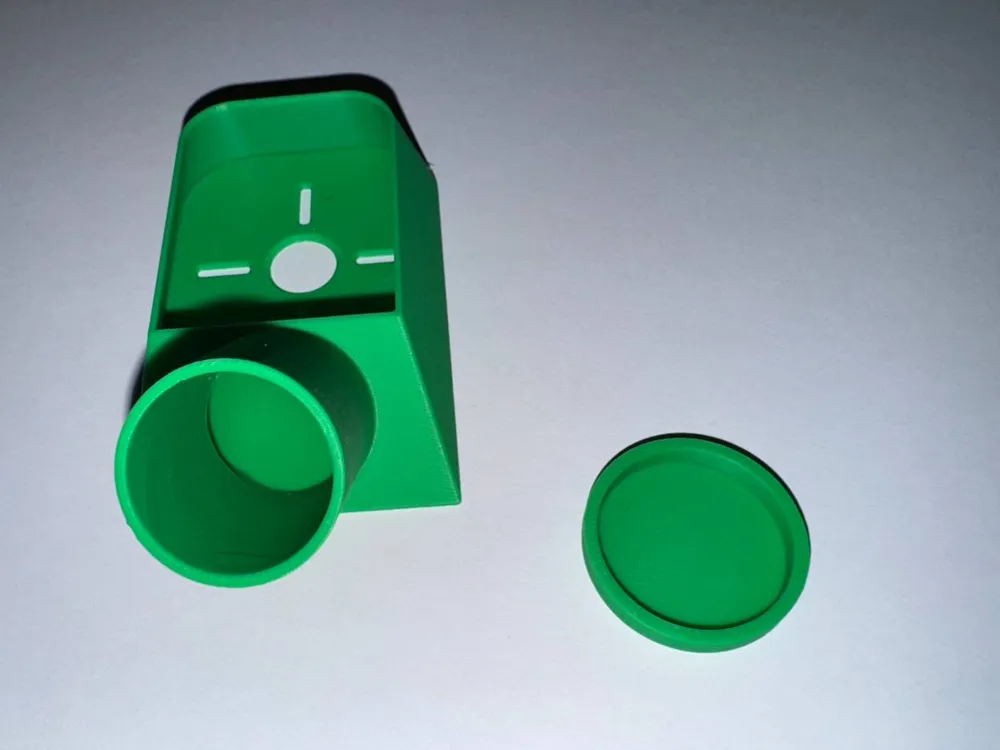

I have designed this dust collector for use with a drill when boring into walls; it offers dual functionality as a collector (when used with the cap) or a conveyor when used with a vacuum cleaner thanks to its cylindrical attachment.
The cylinder is slightly conical, with external diameters of:
minimum 26.5 mm
maximum 28 mm
Should your vacuum cleaner have a different diameter, simply scale the model proportionally (remember to scale the cap as well).
The hole diameter for the drill bit is 12 mm, and there are slots carved to allow viewing of any guide lines drawn on the wall.
