Description

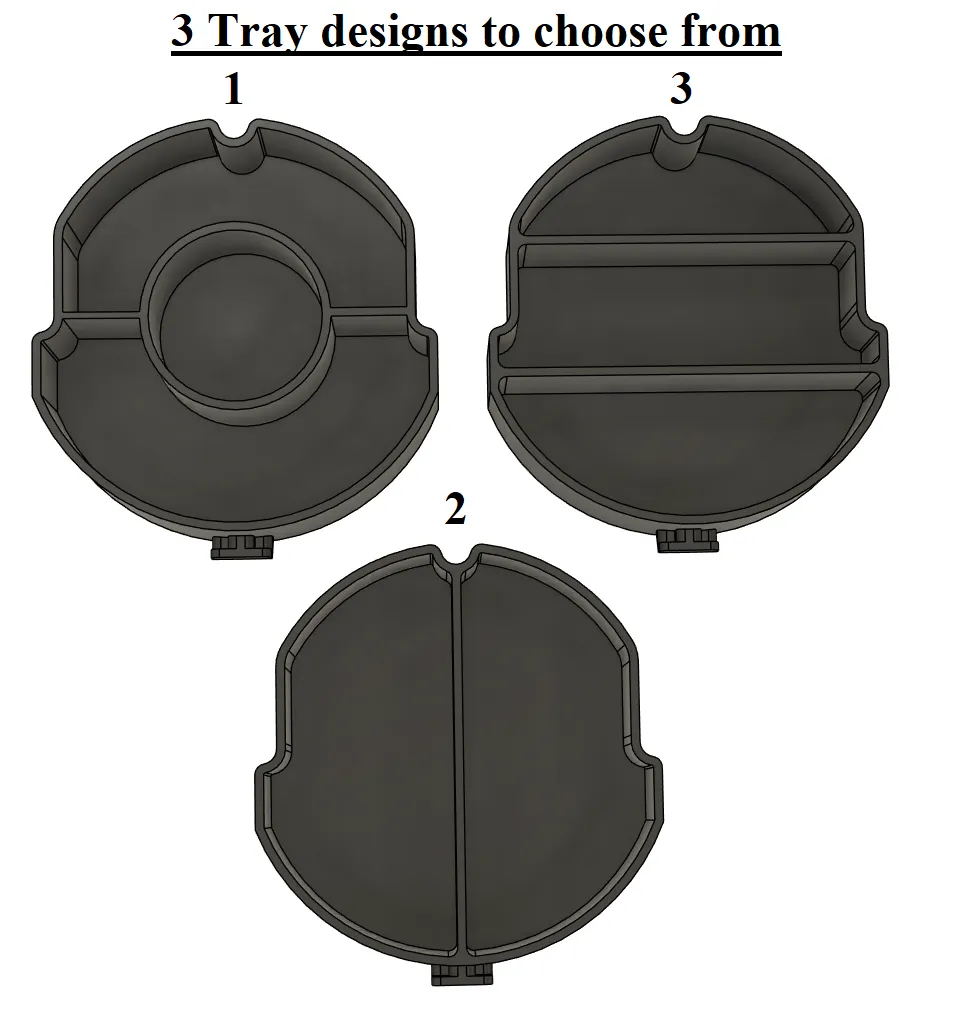

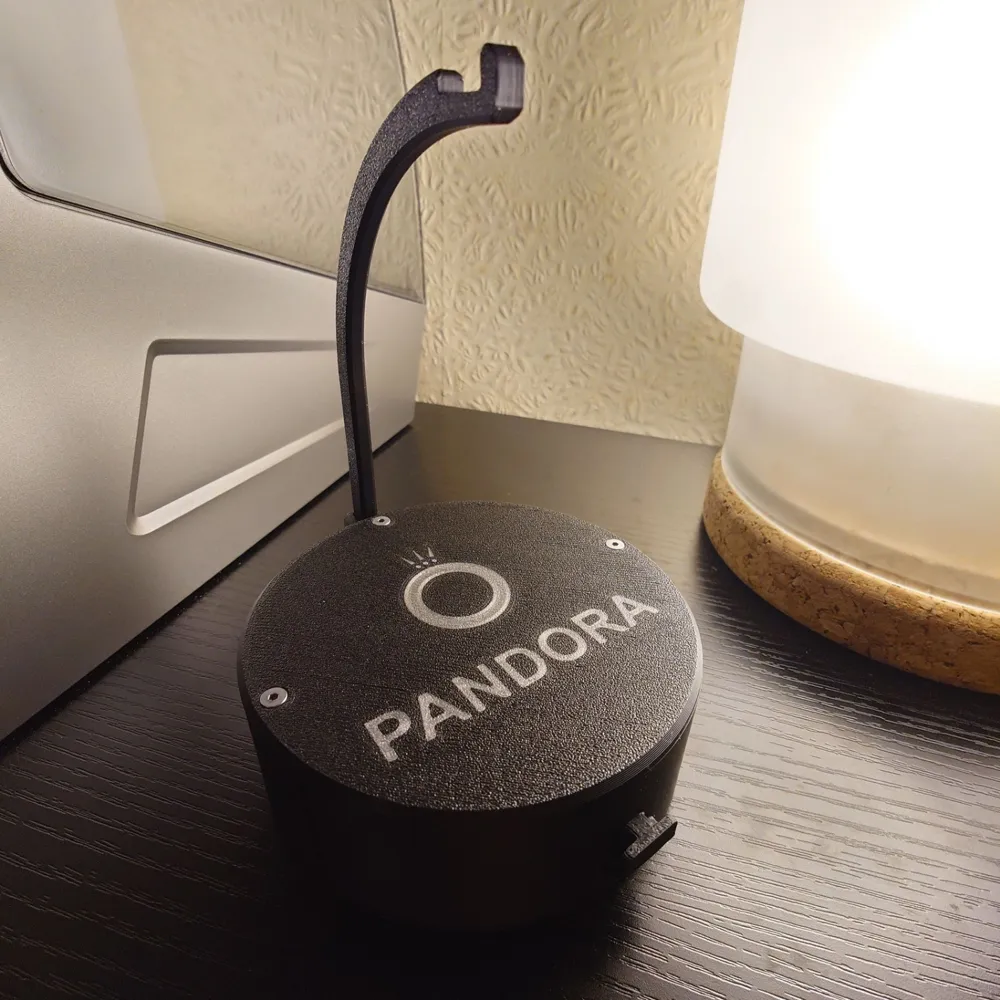

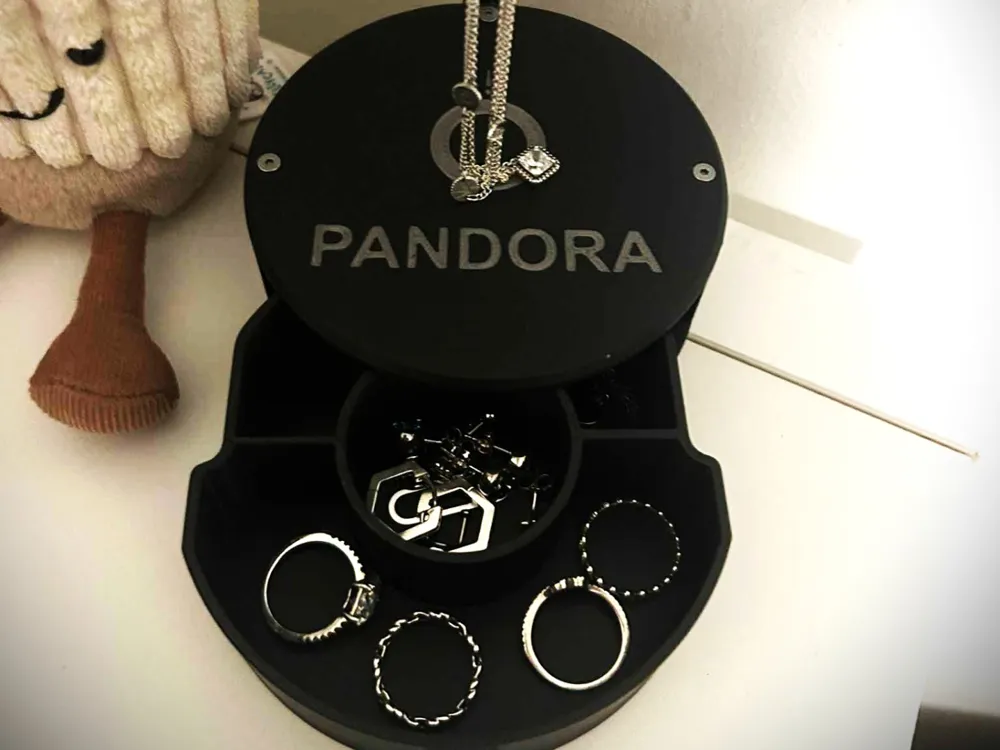

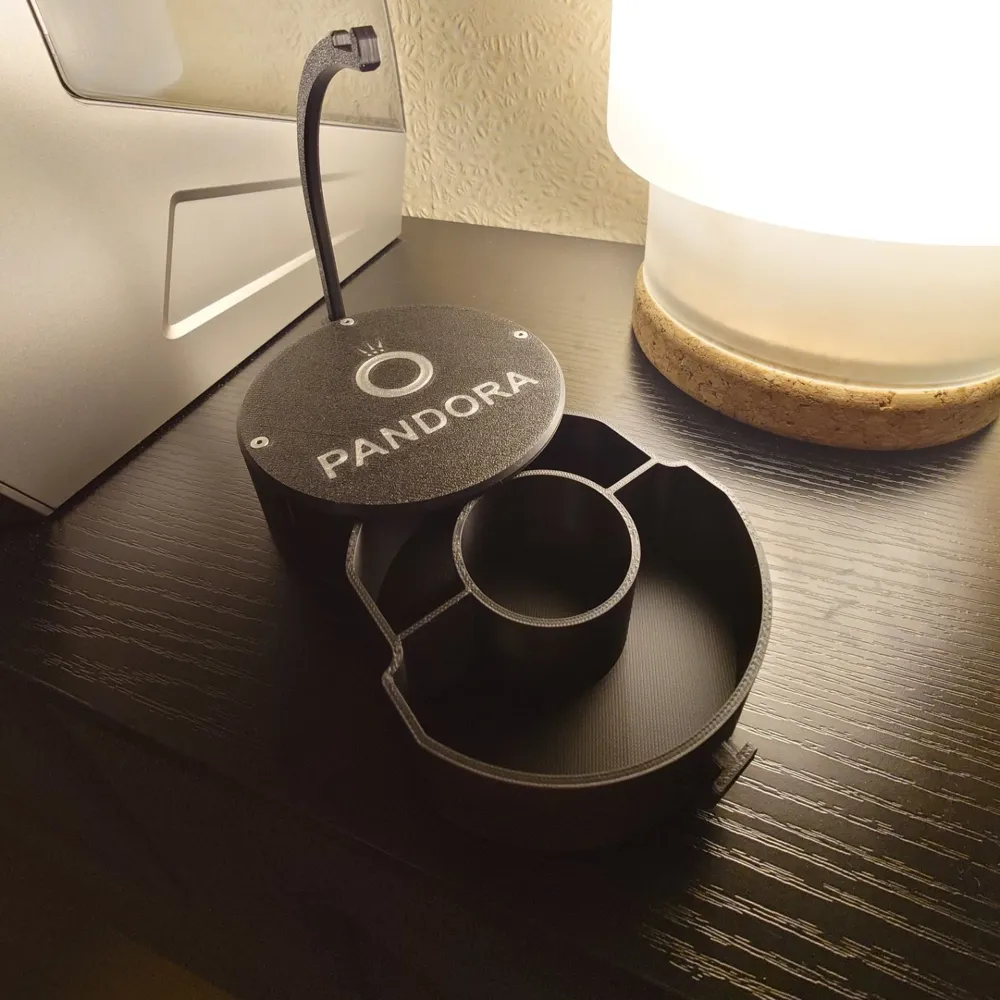

A small storage case for jewellery/ bracelet charms, with a hook to display frequently worn items. A single chest requires 5 M2.5x10mm screws for assembly. These are available in and linked to the Maker's supply store below. Alternatively, you might be able to get away with gluing the pieces together. I have included 3 different drawer versions to suit different tastes. I think these chests look quite nice with the brands of your chosen jewellery embossed in the top. For copyright reasons I have decided against uploading any, instead providing a blank top plate that you can modify within the slicer. I have also provided a Fusion 360 file if you would like to edit the top plate in CAD. Assembly is self explanatory: Three screws secure the top plate to the bottom and two screws secure the display hook to the base of the box.

I have uploaded two 3mf. print profiles, one for the A1 mini and another suitable for P1S/X1C sized build plates. These include all 3 tray designs, simply delete the ones that you don't want and print the one you do.

Hopefully some of you will find this box useful, catch you on the next design upload :)

Boost Me (for free)

As always, thank you for your continued support :) If you like this design, please feel free to leave a boost. They're always much appreciated and help encourage me to keep bringing new designs to the 3D printing community.

Model stats

Weight: 106.2g This will vary depending on the draw you choose. This weight was with the version 1 drawer.
Size: L: 10cm W: 11cm H: 13.7cm.
Print time (with recommended settings): Approx. 2h30m
Design time: 1h45m
