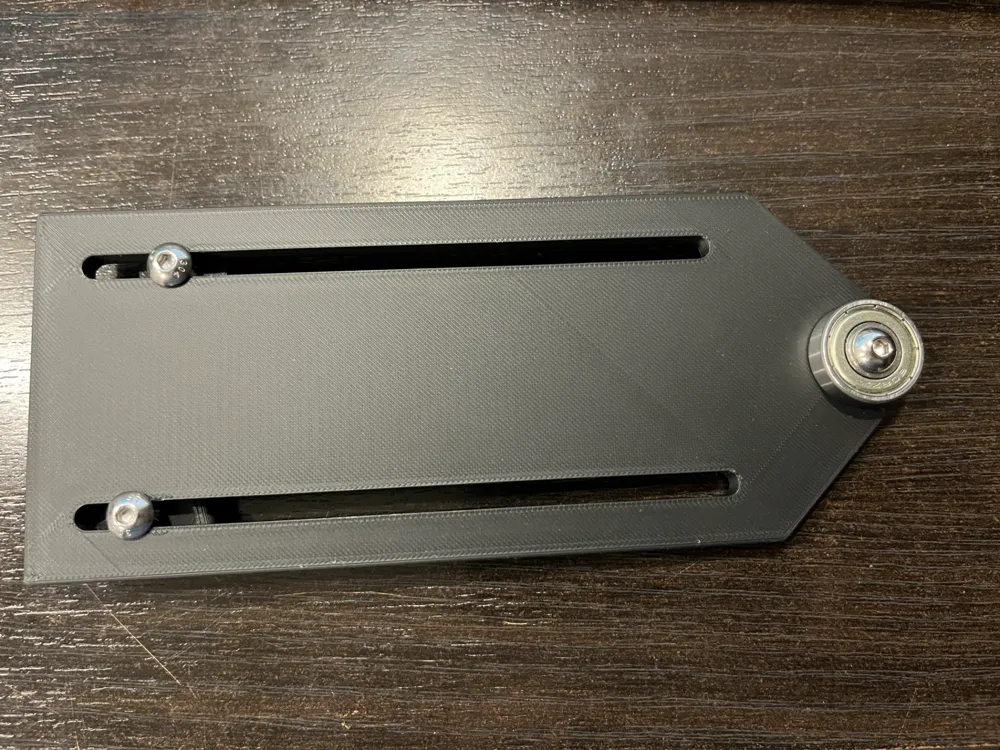

Table saw thin strip jig
Print Profile(1)
Bill of Materials

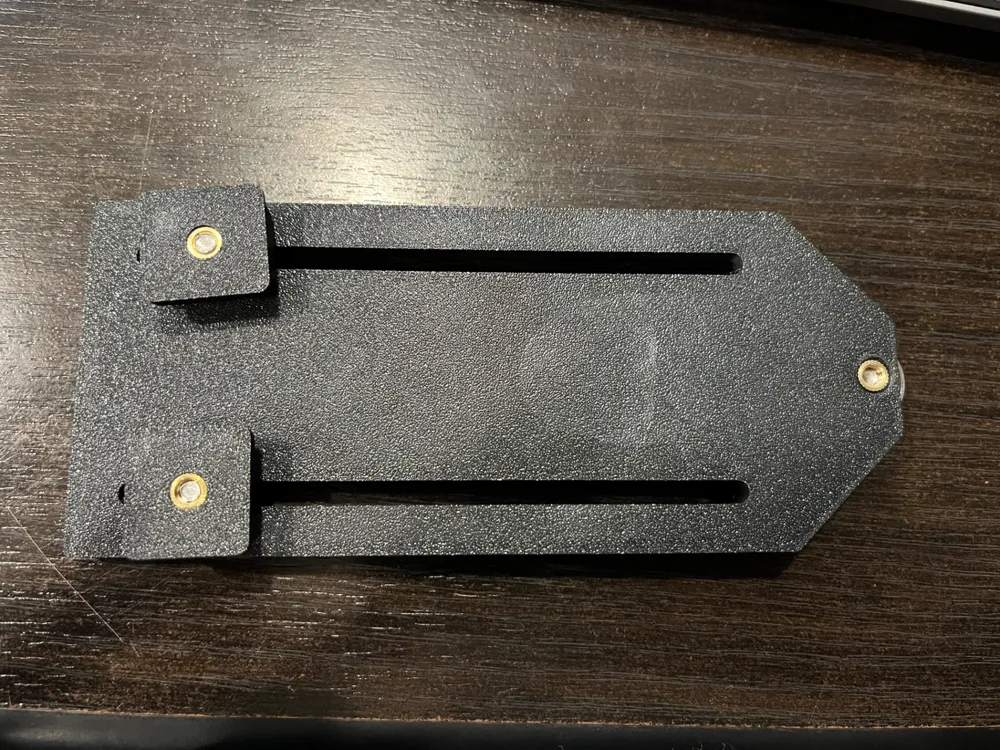

- M5 inserts x 3:
- M5 x16 screw x 2: T-nut assembly
- M5 x12 screw x 1: Secures bearing
Description
Boost Me (for free)
If you found this model helpful, don't forget to boost and like, your support is greatly appreciated.
Needed a simple jig to make a bunch of strips for some upcoming Kumiko projects.

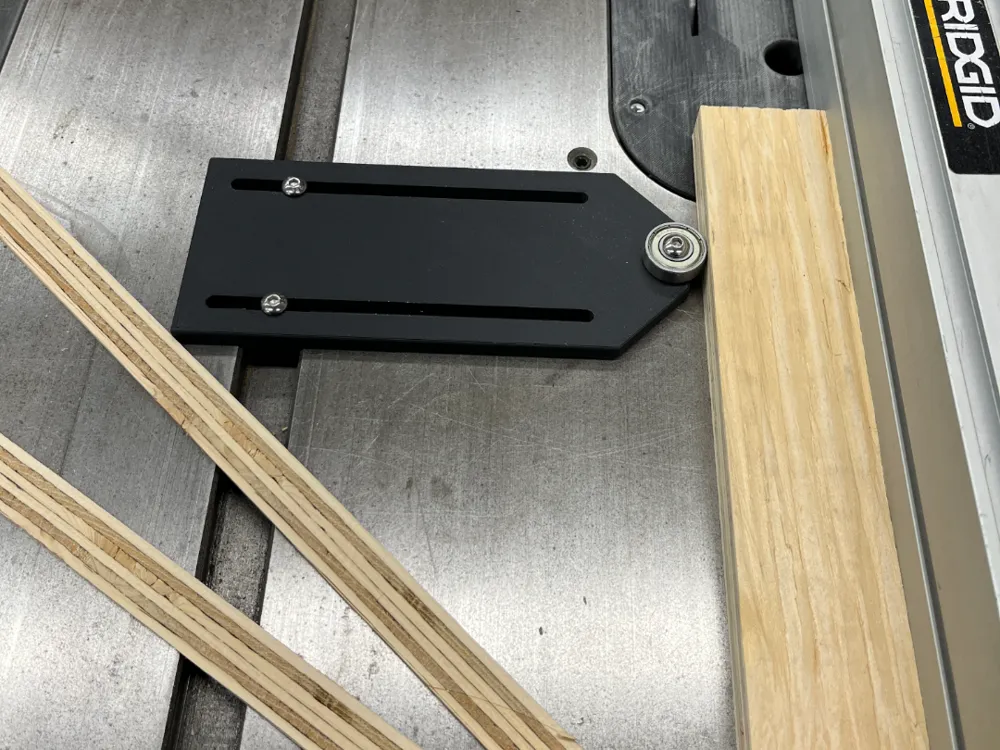

Made and tested to fit the ridged R4512 table saw. It should fit others as the T slots are standard.
Also works with the Bosch TKS as per feedback
let me know if you have any recommendation on how to make this model better, so more people can benefit.

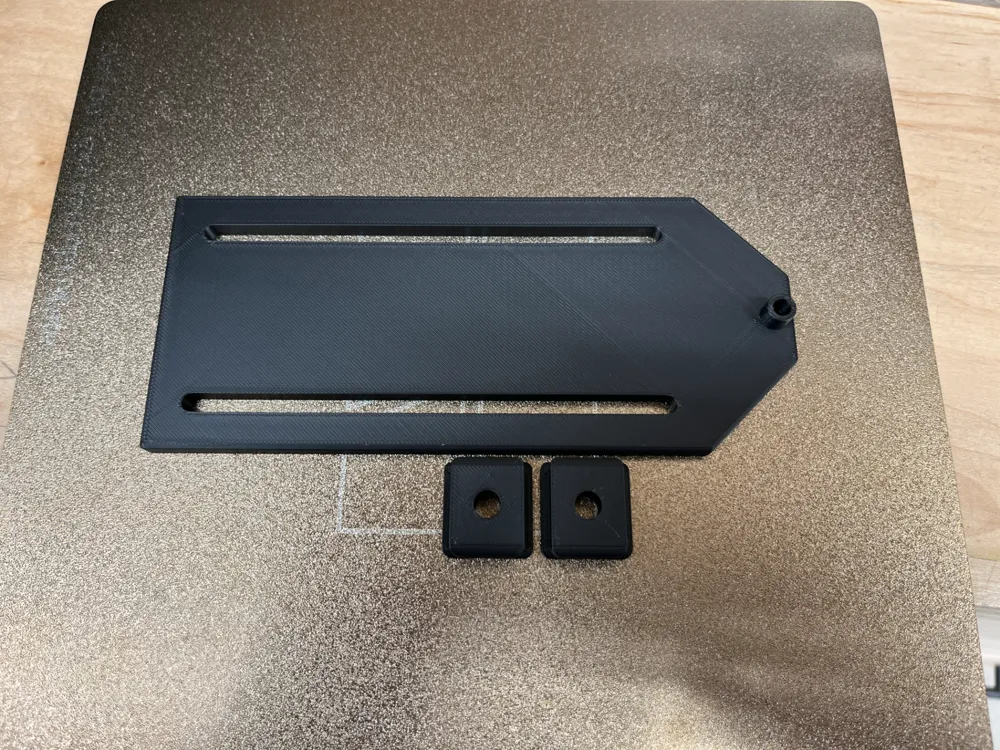

Print time on a P1S at standard speed is 1 hour and 15 min. Used generic PLA at 15% fill.

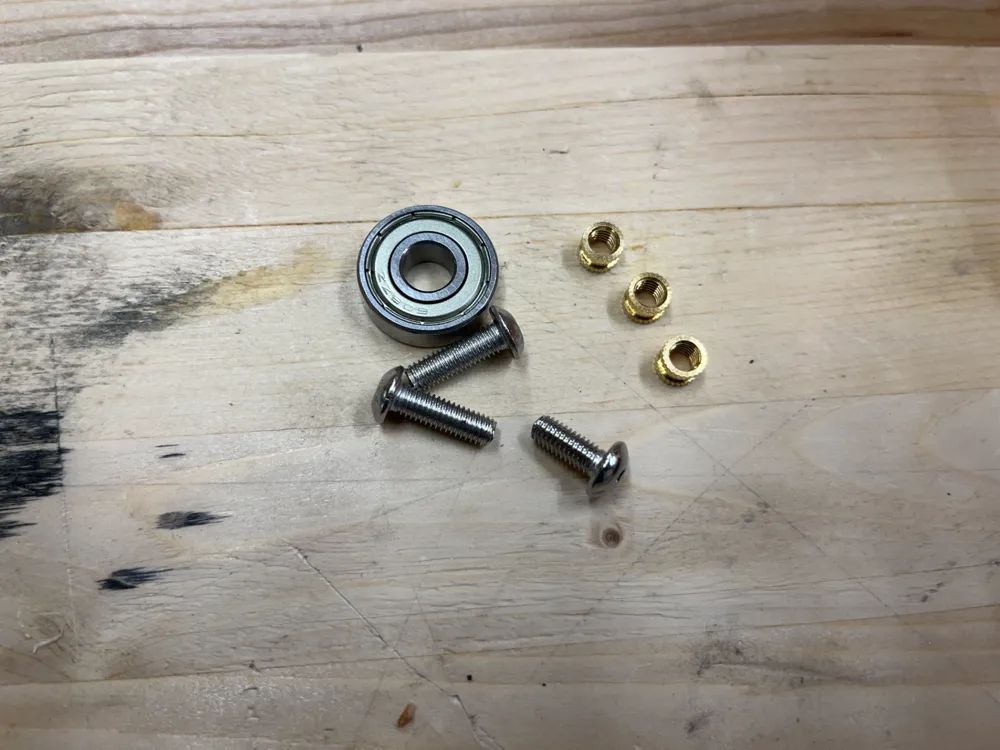

Hardware needed
1x608zz bearing
3xM5 inserts
2xM5 x16 screws (T-nuts)
1xM5 x12 screw (Bearing)
