Single-control-box version of the drying box (without PWM controller), lower cost, easier wiring
Print Profile(1)
Description

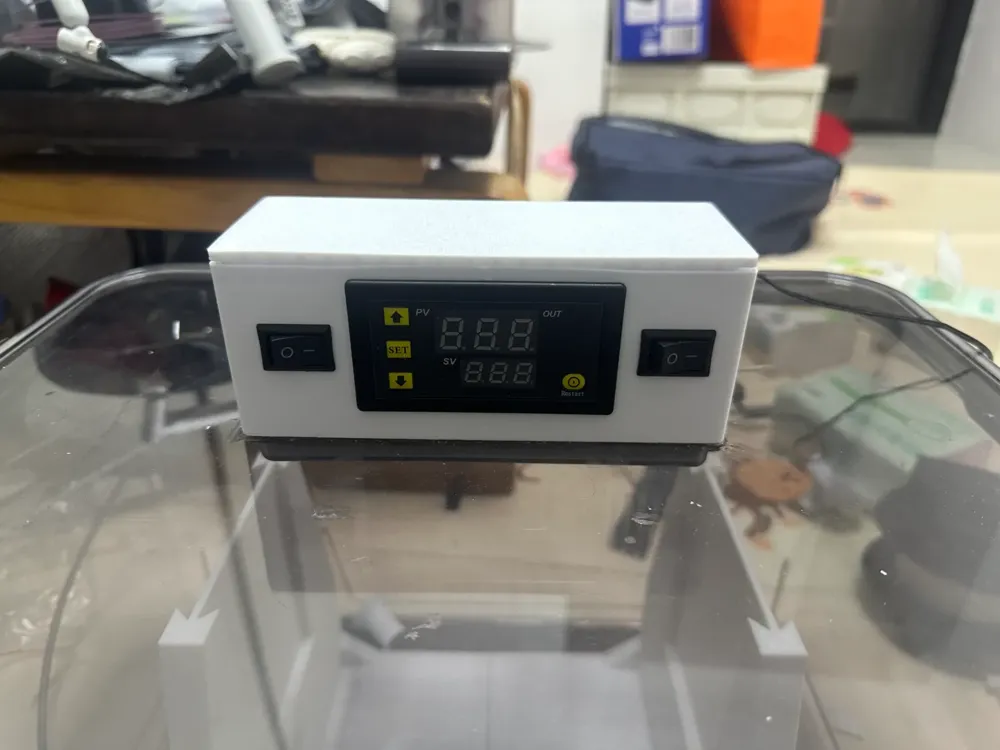

This control box is an upgraded accessory for the dryer project: 4-tray Dryer & Dehydrator Polydryer+ Three Green S4 Combined Version Supports amslite
Primarily, it eliminates the PWM controller, and the extra 20 yuan budget can upgrade the temperature control switch to a WIFI-enabled control board (with timer functions)
Search by image on PDD or TB to purchase a 10A AC version
Recommended fan configuration: two 4020 10000 RPM or higher constant-speed fans (red and black wire version); for quieter operation, select FDB fluid dynamic bearing fans

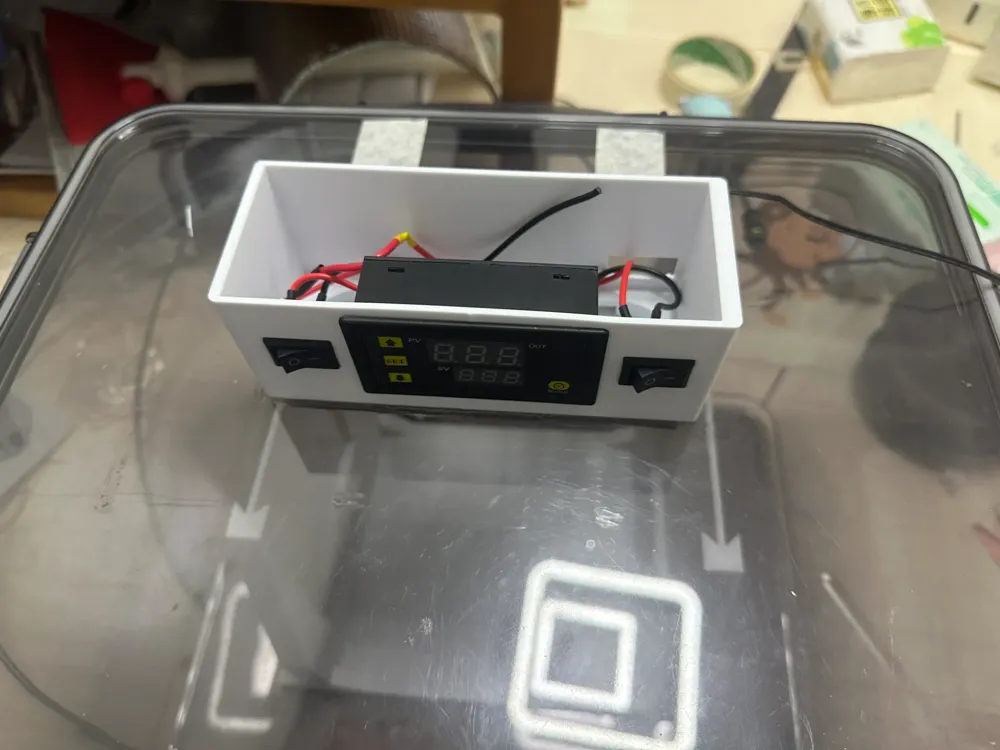

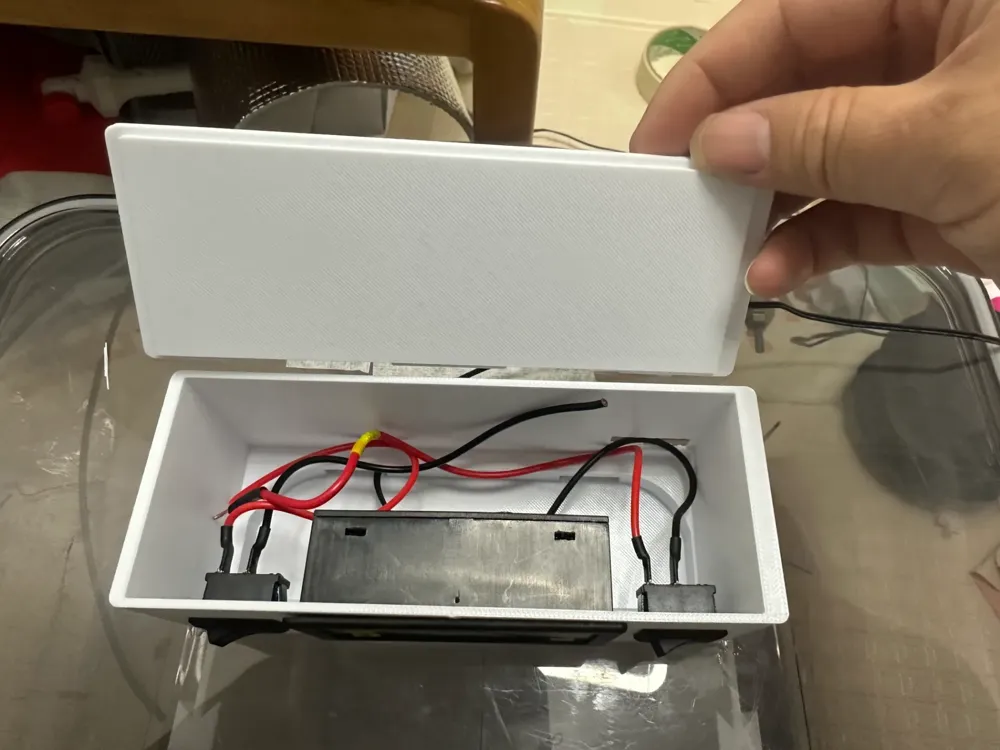

Alternatively: the standard version (with PWM fan controller) includes an added top cover compared to the original; opening the cover facilitates wiring; this version is suitable for those requiring PWM control

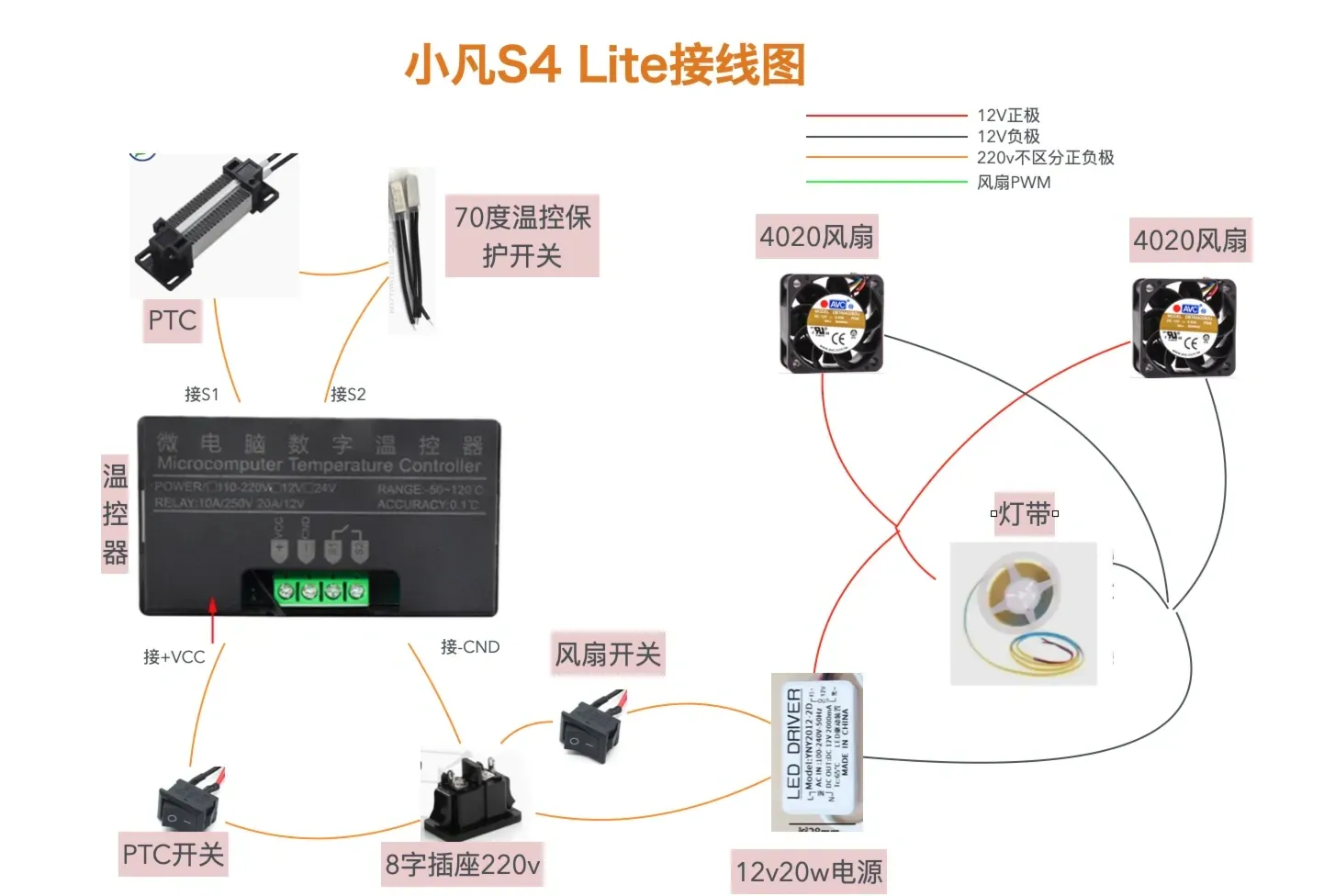

Wiring diagram for the single-controller version:

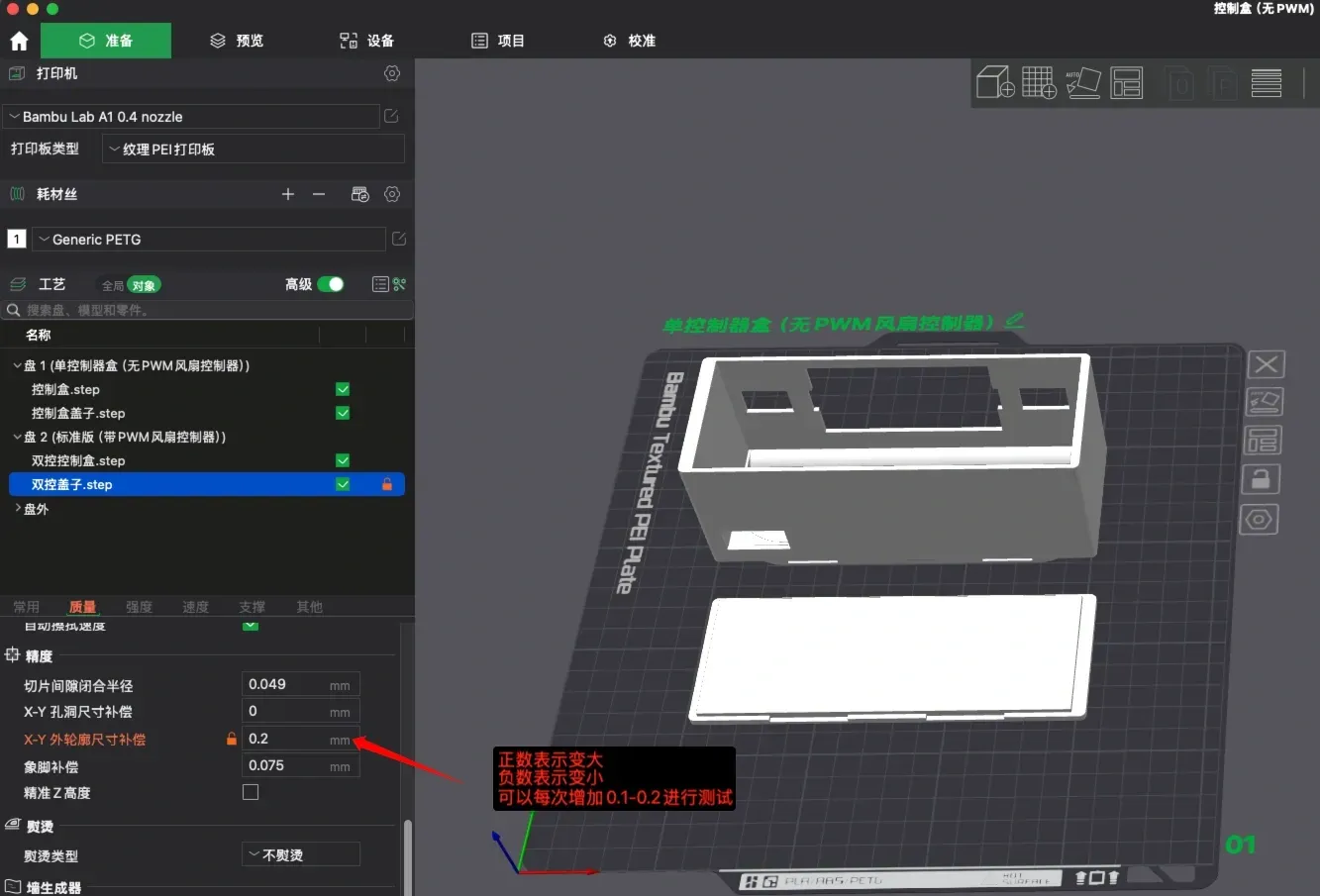

Note that different materials exhibit varying shrinkage rates; if the cover does not fit, reprint the cover section using the following method:
