AS5600 Encoder DC / Three phase Motor Connector
Print Profile(1)
Description

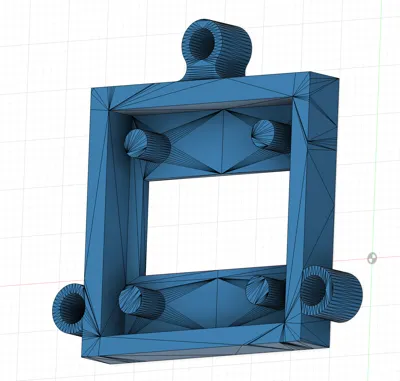

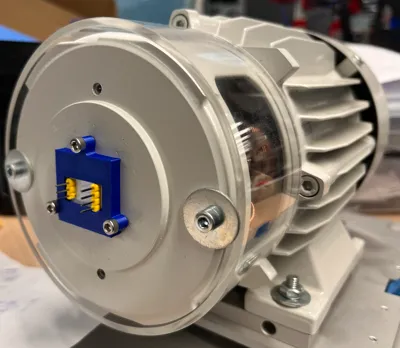

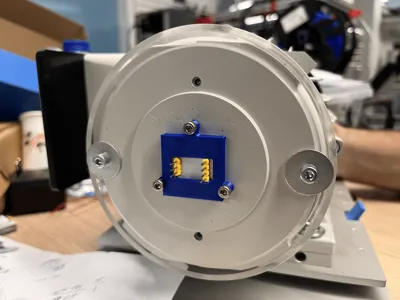

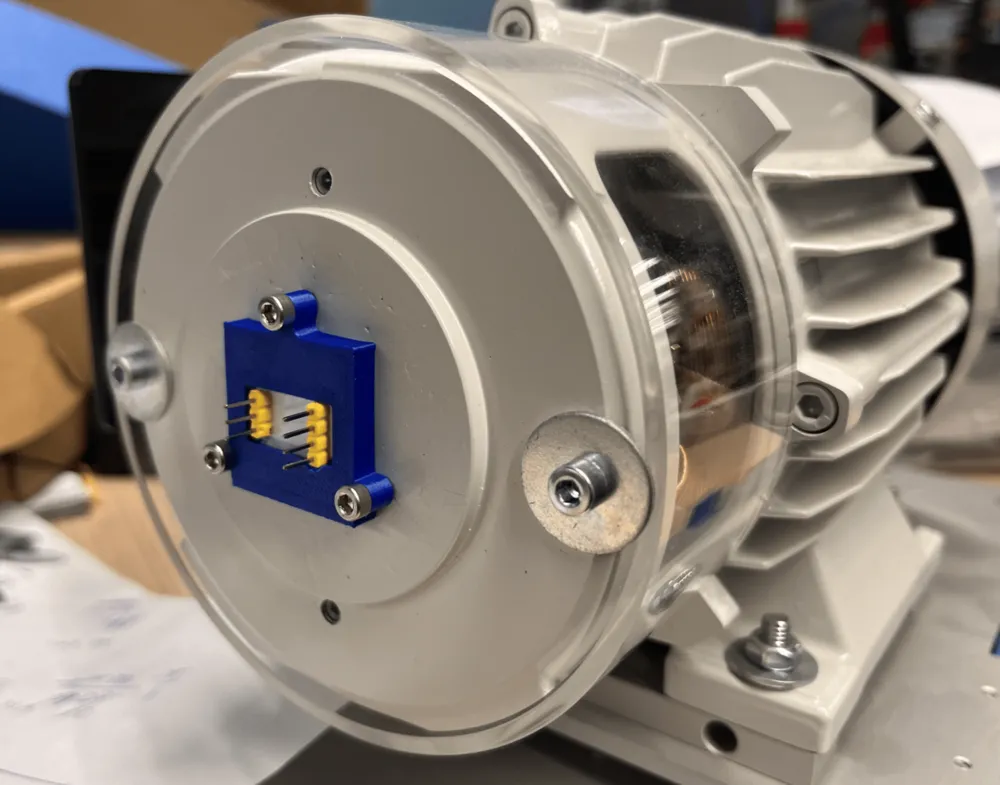

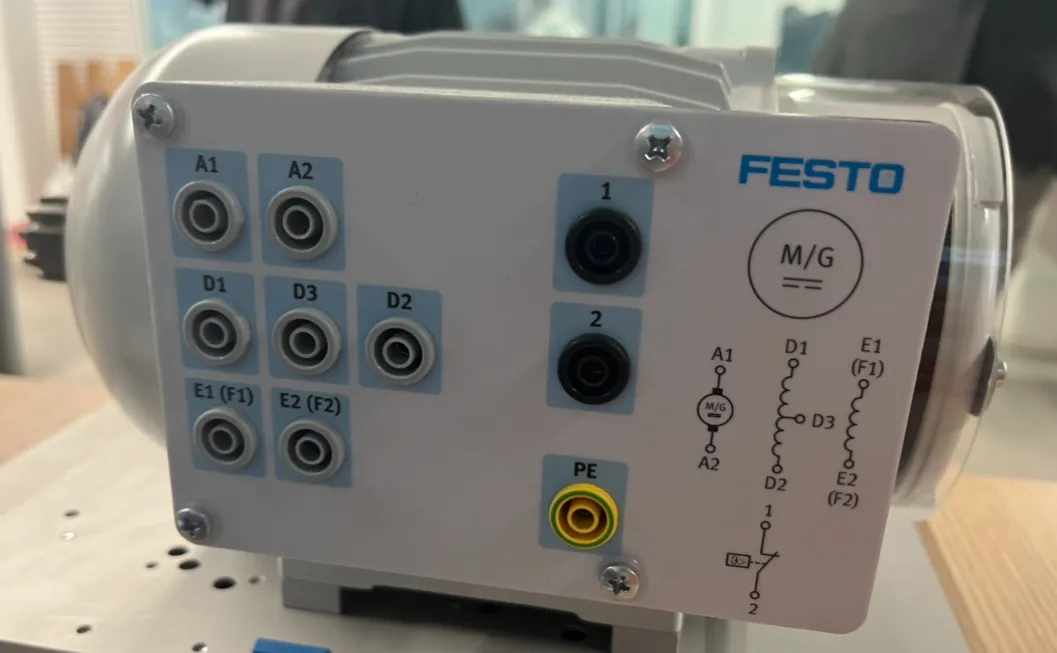

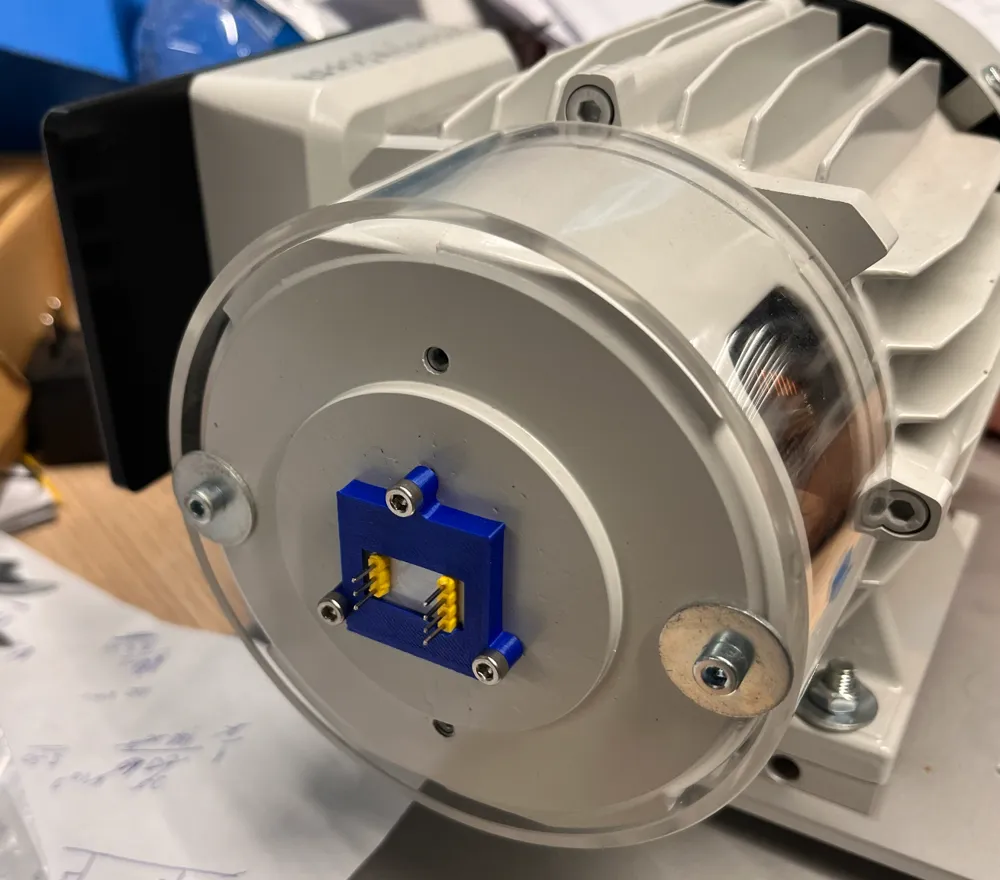

This is AS5600 Encoder Module Connecter for DC or Three Phase Motors. The motor that is designed for is one of the Festo's DC motors. Since the mounting holes of this motor model is one of the standard models, it can fit other motors too.

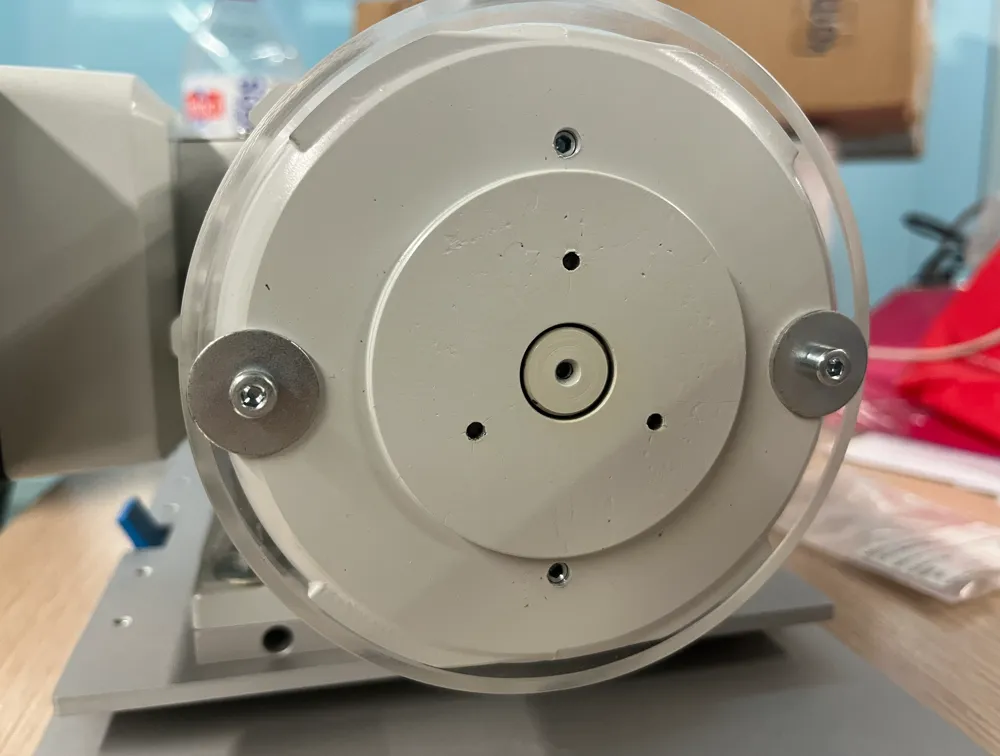

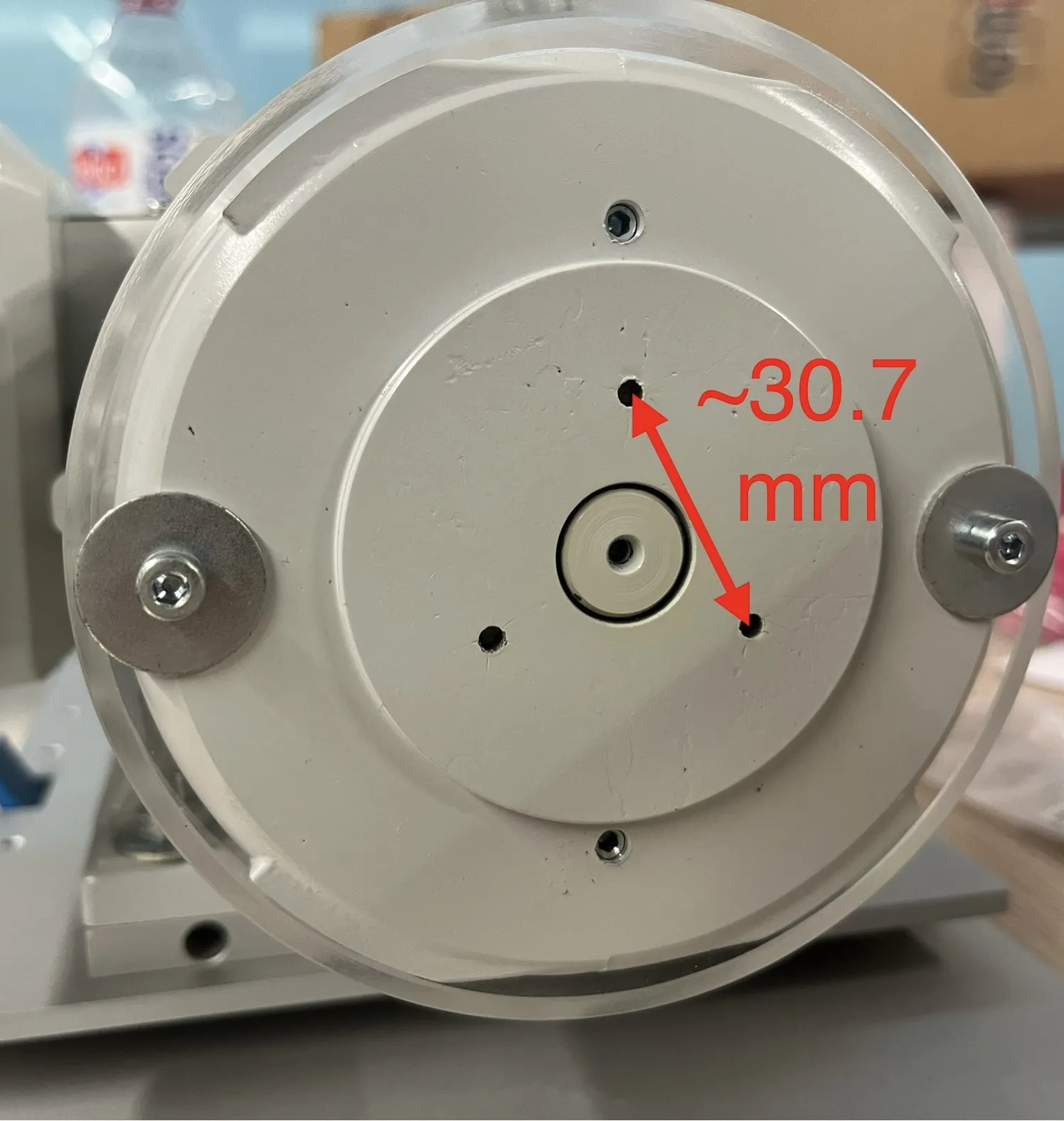

The connection holes has ~30.7mm (From holes' centers to centers) each.
Note: You also need screws to connect the print to motors.
This remix is based on
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
