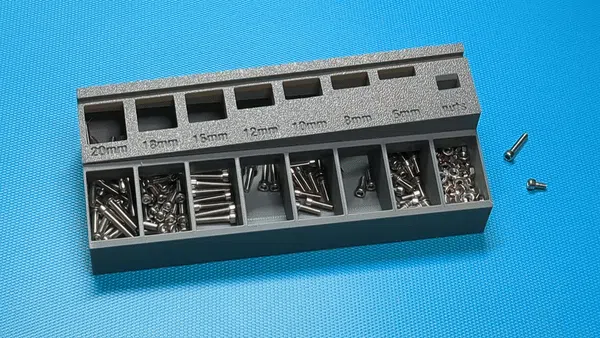

This amazing automatic M3 bolt sorter is designed for the specific bolts you can see in the picture. I don't know how it works with other M3 bolts, but feel free to try. :)

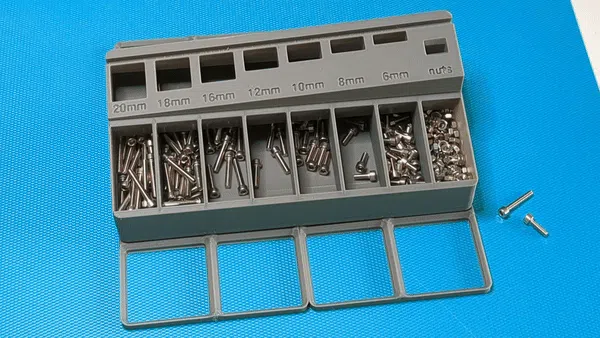

I also added a Gridfinity version.
